D-type socket assembly

E717-500A

For 28mm dia. Side-on PMT

Applicable PMT 28 mm Side-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Supply Voltage 1500 V
[Max. Rating] Voltage Divider Current 0.46 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 3.3 MΩ
Max. Linear Output in DC Mode 22 μA (at 1500 V)
Notes E717-63 with connector

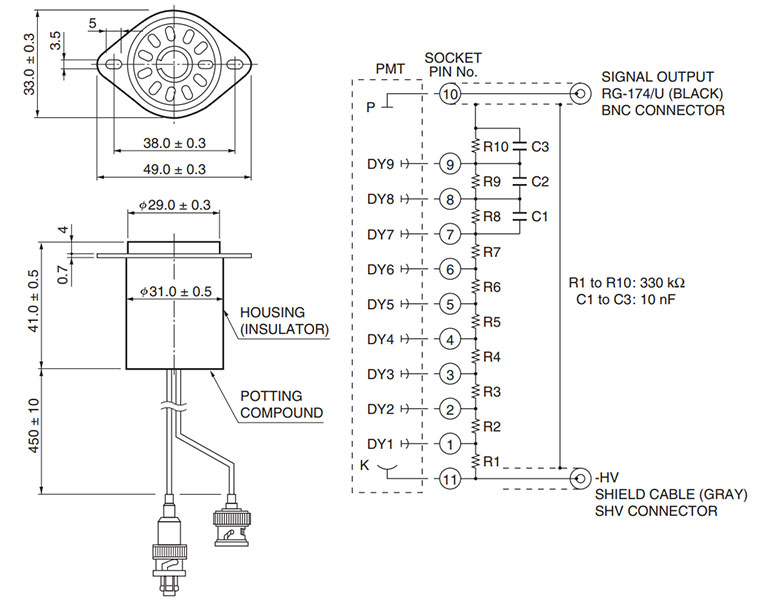

Dimensional outline (Unit: mm)
