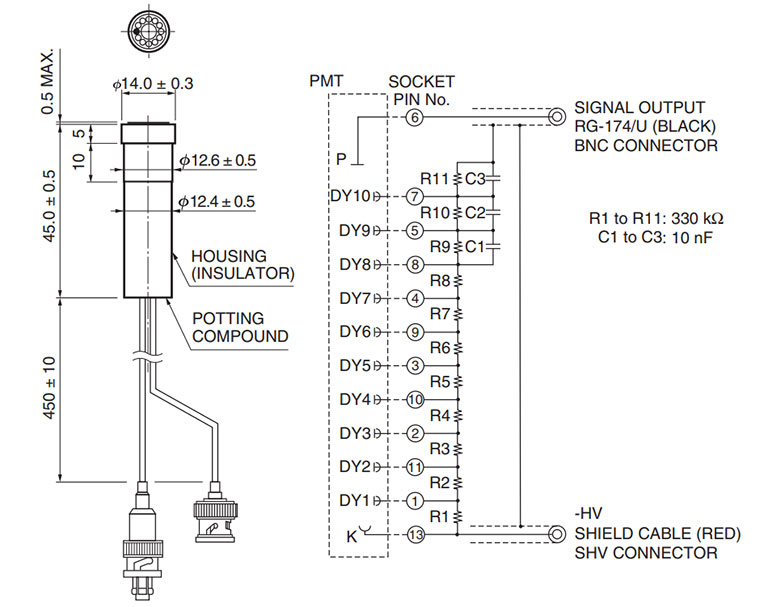

D-type socket assembly
|Applicable PMT||13 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||1250 V|
|[Max. Rating] Supply Voltage||1250 V|
|[Max. Rating] Voltage Divider Current||0.34 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||3.63 MΩ|
|Max. Linear Output in DC Mode||17 (at 1250 V) μA|
|Notes||E849-35, with connector|
