D-type socket assembly

E849-99

For 13mm dia. Head-on PMT

Applicable PMT 13 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1250 V
[Max. Rating] Supply Voltage 1250 V
[Max. Rating] Voltage Divider Current 0.32 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 3.96 MΩ
Max. Linear Output in DC Mode 16 μA (at 1250 V)
Signal Output DC / Pulse
Notes For R12421, E5038 supplied

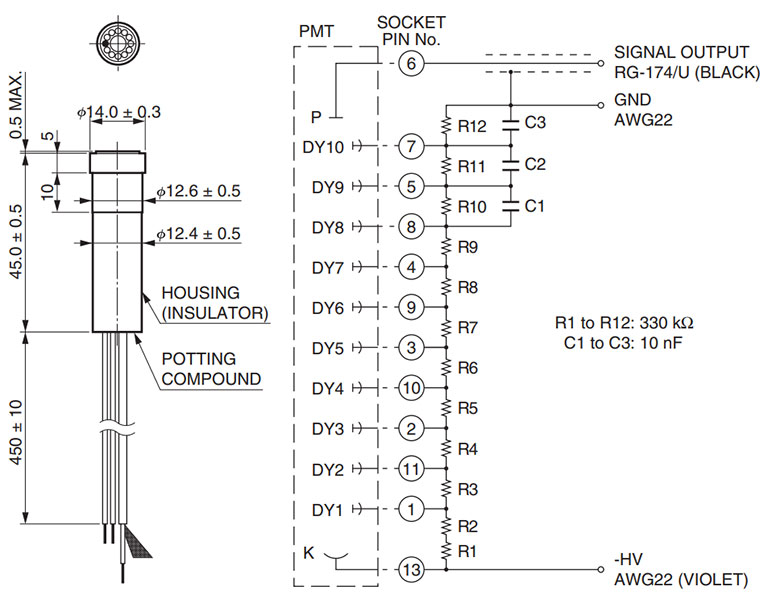

Dimensional outline (Unit: mm)
