D-type socket assembly

E974-14

For 19mm dia. Head-on PMT

Applicable PMT 19 mm Head-on type
Supply Voltage Polarity +
[Max. Rating] Insulation Voltage (Case-Pins) 1800 V
[Max. Rating] Supply Voltage 1800 V
[Max. Rating] Voltage Divider Current 0.48 mA
Total Voltage Divider Resistance 3.81 MΩ
Notes For scintillation counting

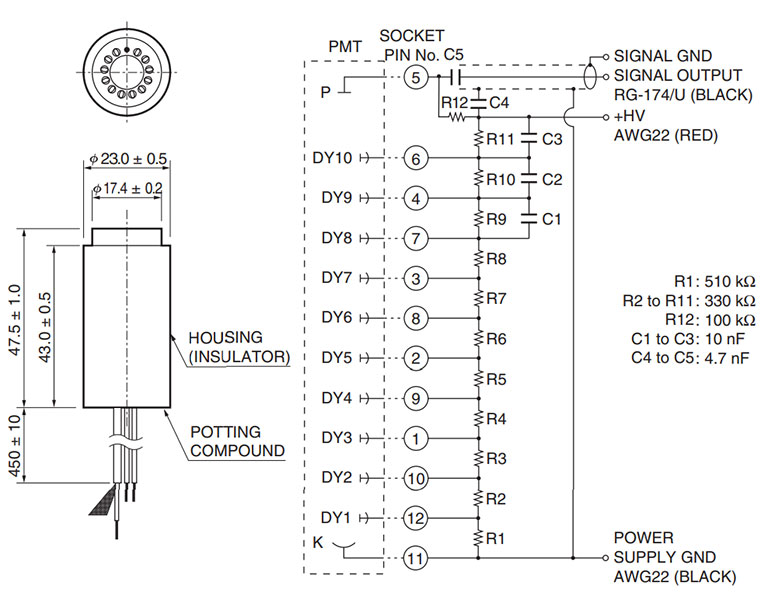

Dimensional outline (Unit: mm)
