HV power supply module

C14478-53

C14478-53 is a PC-board mountable power supply module with a regulator. Linear and highly accurate output in the range of +10 V to +250 V.

Features

  • Compact size: 26 mm(W) x 8 mm(H) x 17 mm(D)
  • Lightweight: 6 g
  • High output accuracy
  • Low ripple / noise
  • High stability
  • Safety standard IEC61010-1 conformed

Applications

  • Semiconductor element (Photodiode, Avalanche photodiode)
  • Radiation detection (CdTe, CZT)
  • For bias voltage supply

Characteristics

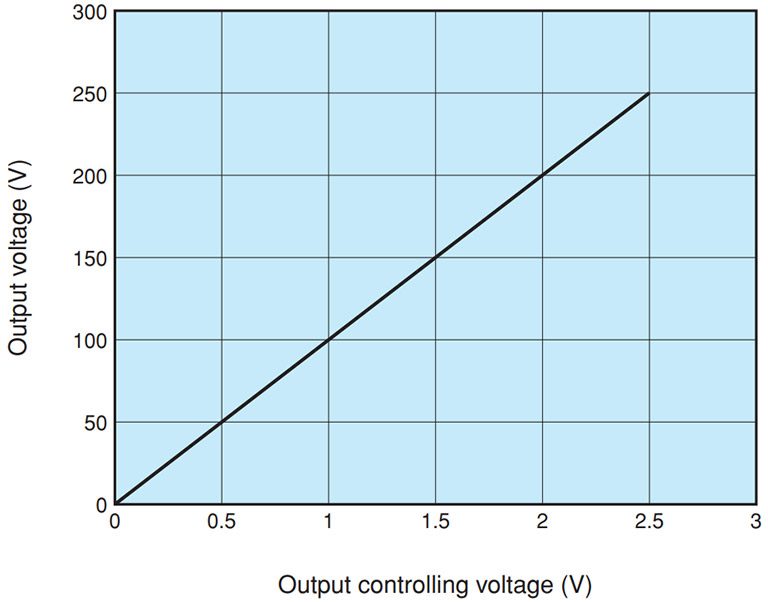

Output accuracy (Output linearity)

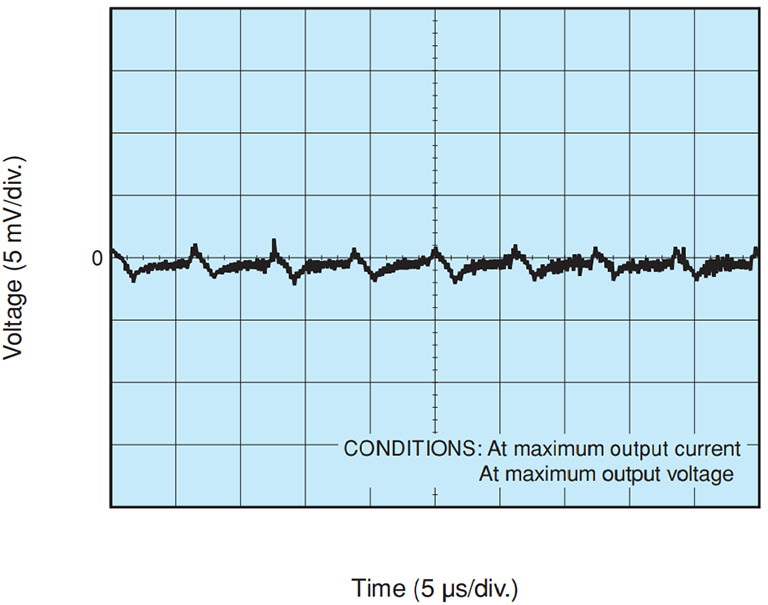

Ripple / Noise

Specifications

Type Compact type
Input Voltage +4.75 V to +5.25 V
Max. Input Current 125 mA
Specification Guaranteed Output Voltage Range +10 V to +250 V
Output Voltage Accuracy +/-0.5 %
Max. Output Voltage +250 V
Max. Output Current 1 mA
Response Time 40 ms
Line Regulation +/-0.01 %
Load Regulation +/-0.01 %
Temperature Coefficient (Typ.) +/-0.01 %/℃
Ripple/Noise (Typ.) 10 mV
Output Controlling Voltage 0 V to +2.5 V
Operating Ambient Temperature -10 ℃ to +60 ℃
Operating Ambient Humidity Below 85 %
Storage Temperature -20 ℃ to +70℃
Storage Humidity Below 85 %
Dimensions (W x H x D) 26 x 8 x 17 mm
Weight 6 g

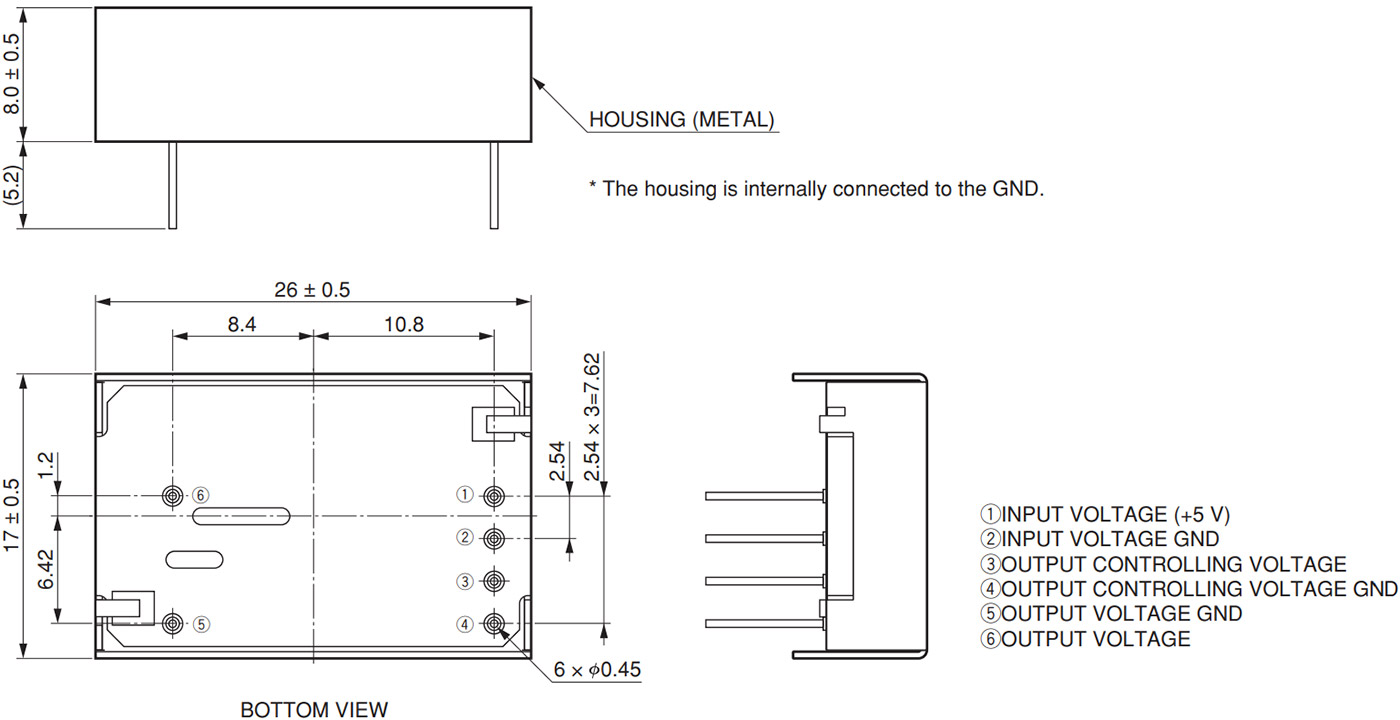

Dimensional outline (Unit: mm)
