Photomultiplier tube

R9880U-09

The R9880U series is a TO-8 type compact metal package PMT.

The R9880U-09 is Cs-Te photocathode PMT with spectral response range from 160 nm to 320 nm.

Type Metal package type
Tube Size Dia.16 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.8 mm
Wavelength (Short) 160 nm
Wavelength (Long) 320 nm
Wavelength (Peak) 240 nm
Photocathode Material Cs-Te
Window Material Quartz glass
Dynode Structure Metal channel
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 1100 V
[Max. Rating] Average Anode Current 0.01 mA
[Cathode] Radiant Sensitivity Typ. 35 mA/W
[Anode] Gain Typ. 2.0 x 106
[Anode] Dark Current (after 30min.) Typ. 0.1 nA
[Anode] Dark Current (after 30min.) Max. 1 nA
[Time Response] Rise Time Typ. 0.57 ns
[Time Response] Transit Time Typ. 2.7 ns
[Time Response] Transit Time Spread Typ. 0.2 ns

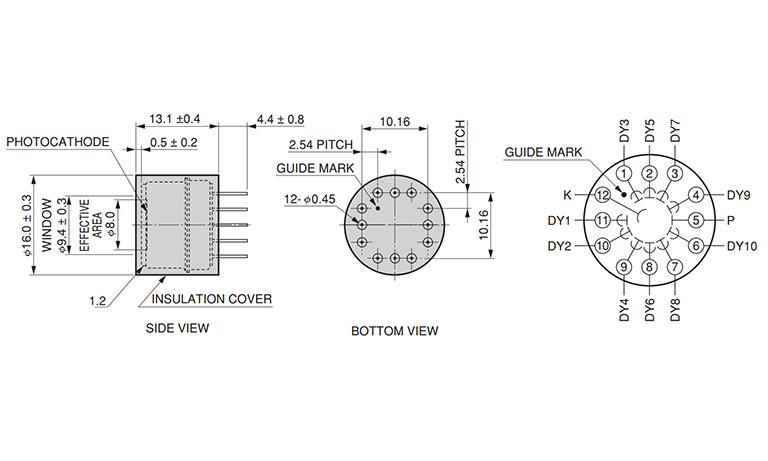

Dimensional outline (Unit: mm)
