|Type||High Q.E. type|

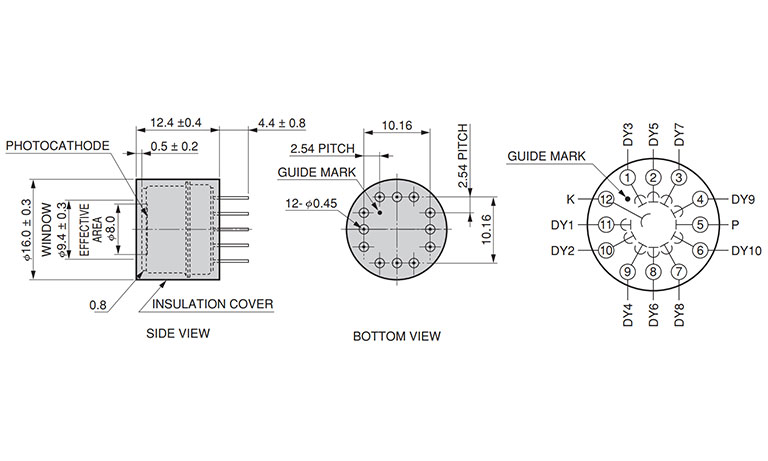

|Tube Size||Dia.16 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.8 mm|
|Wavelength (Short)||230 nm|
|Wavelength (Long)||700 nm|
|Wavelength (Peak)||400 nm|
|Spectral Response Curve Code||-|
|Photocathode Material||Ultra bialkali (UBA)|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||1100 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||100 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||135 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||15.5|
|[Cathode] Radiant Sensitivity Typ.||130 mA/W|
|[Anode] Luminous Sensitivity Min.||100 A/lm|
|[Anode] Luminous Sensitivity Typ.||270 A/lm|
|[Anode] Gain Typ.||2.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||1 nA|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Time Response] Rise Time Typ.||0.57 ns|
|[Time Response] Transit Time Typ.||2.7 ns|
|[Time Response] Transit Time Spread Typ.||0.2 ns|
