Mini-spectrometer

C11482GA

For near IR (900 to 1700 nm)





Hamamatsu TG series mini-spectrometer C11482GA is a polychromator integrated with optical elements and an image sensor. Light to be measured is guided into the entrance port of the C11482GA through an optical fiber and the spectrum measured with the built-in image sensor is output from the USB port to a PC for data acquisition. The C11482GA is a palmtop-size unit and operates on USB bus power. It comes supplied with sample software that allows setting measurement conditions, acquiring and saving data,and displays graphs. Original measurement software can be designed on an end-user's side as DLL's function specification is disclosed.


Features
- High throughput due to transmission grating made of quartz
- Highly accurate optical characteristics
- No external power supply required (Uses USB bus power)
- Compact design for easy assembly
- Wavelength conversion factor is recorded in internal memory



Spectral response range 900 to 1700 nm
Spectral resolution (FWHM) (typ.) 5 nm
Spectral resolution (FWHM) (max.) 7 nm
Cooling Non-cooled
A/D resolution 16 bits
Interface USB 2.0
Built-in sensor InGaAs linear image sensor
Number of total pixels 512 pixels

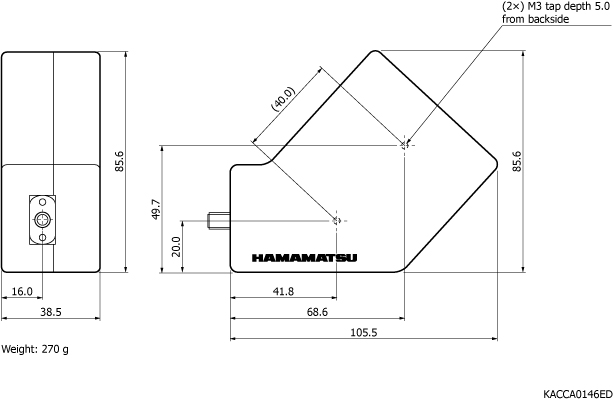

Dimensional outline (unit: mm)
