CMOS area image sensor

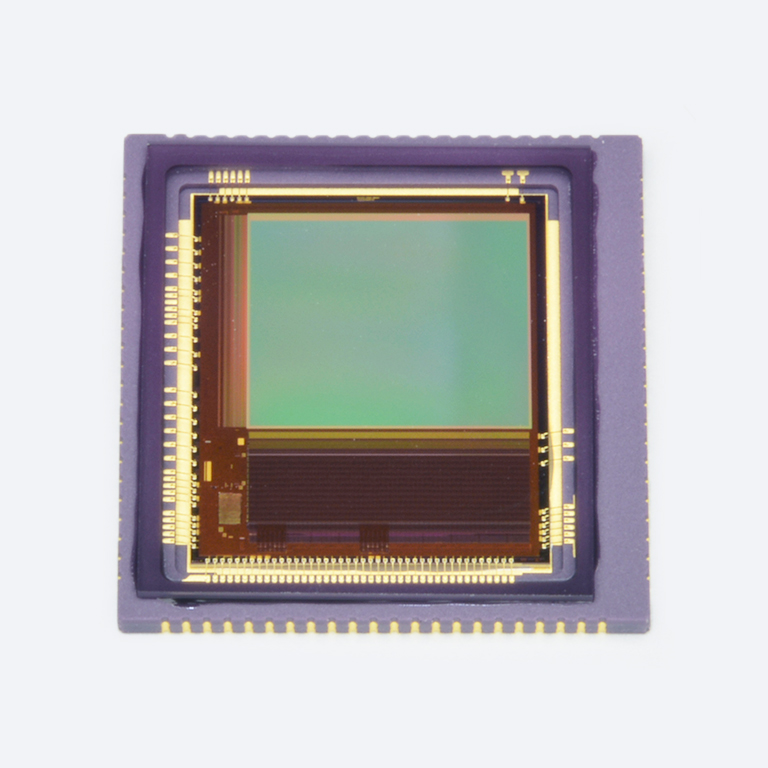

The S13102 is an APS type CMOS area image sensor that has high sensitivity in the near infrared region. The pixel format is VGA (640 × 480 pixels). Imaging is possible at a maximum rate of 78 frames/s. It is an all-digital I/O type with built-in timing generator, bias generator, amplifier, and A/D converter. Rolling shutter readout or global shutter readout can be selected.
- Pixel size: 7.4 × 7.4 μm
- Number of pixels: 640 × 480 (VGA)
- Rolling/global shutter readout
- Readout noise: 5e- rms
(rolling shutter, at 8 times column amplifier gain)
- Single 3.3 V power supply operation
- SPI communication function
(partial readout, gain switching, frame start mode selection, etc.)
- Partial readout function
|Type||VGA (640×480 pixels)|
|Image size||4.736 x 3.552 mm|
|Number of effective pixels||640 x 480 pixels|
|Pixel size||7.4 x 7.4 μm|
|Spectral response range||400 to 1100 nm|
|Frame rate max.||78 frames/s|
|Window material||Broslicate glass|
