Infrared LED

L9337-02

High power LED for optical switches



The L9337-02 is an infrared LED developed for optical switches. Because a high-power LED chip is mounted, the L9337-02 provides higher radiant output power than previous devices, yet is available at a low cost due to the improved manufacturing process. The L9337-02 uses a high reliability package making it suitable for automobile applications.


Features
-High radiant output power
-High reliability
-Low price



Package Metal
Package Category Flat cap
Peak emission wavelength (min.) 840 nm
Peak emission wavelength (typ.) 870 nm
Peak emission wavelength (max.) 900 nm
Spectral half-width (typ.) 45 nm
Radiant flux (typ.) 10 mW
Forward voltage (typ.) 1.42 V
Cutoff frequency (typ.) 40 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

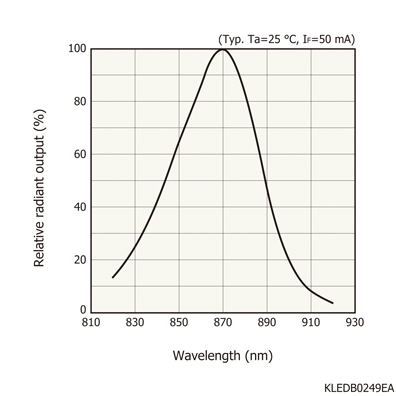

Emission Spectrum

Dimensional outline (unit: mm)
