Quantum cascade lasers (QCLs)

Quantum cascade lasers are semiconductor lasers that offer peak emission in the mid-IR range (4 μm to 10 μm). These devices are an excellent light source for mid-IR applications, such as molecular gas analysis and absorption spectroscopy. While DFB lasers achieve extremely narrow single-mode bands, our technology can also be customized for more tunable lasers. Hamamatsu’s quantum cascade lasers line lead the industry with meticulously manufactured performance at cost-effective prices.

How to select a quantum cascade laser (QCL)

Absorption spectra of molecule

l_qcl_ov1_en

Wavelength Gases Suitable QCLs
DFB-CW type
4.3 μm 12CO2/13CO2 L12004-2310H-C/-E
4.5 μm N2O, CO, CO2
4.5 μm N2O, CO L12004-2190H-C/-E
4.5 μm N2O L12004-2209H-C/-E
5.2 μm NO L12005-1900H-C/-E
6.1 μm NO2 L12006-1631H-C/-E
7.2 μm SO3 L12007-1392H-C/-E
7.4 μm SO2 L12007-1354H-C/-E
7.8 μm 12CH4/13CH4 L12007-1294H-C/-E
7.8 μm CH4, N2O
9.0 μm NH3
9.6 μm O3
10 μm NH3

* This table does not guarantee the detection of each gas.

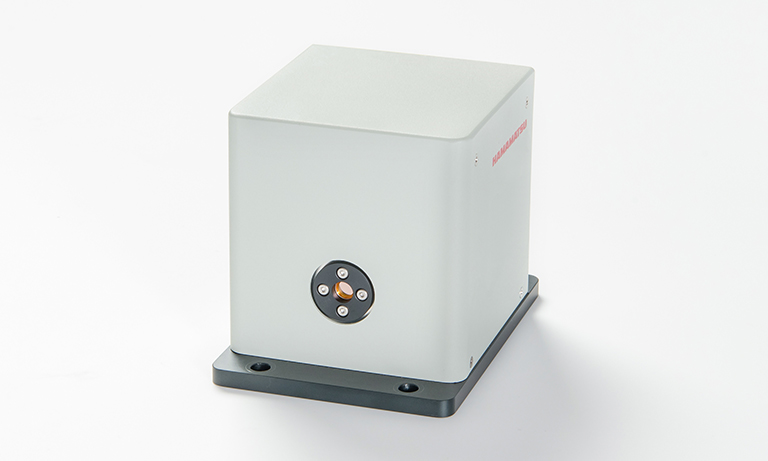

It is a pulse quantum cascade laser capable of broad wavelength sweeping and has an external cavity configuration.

The lens-integrated package for DFB-CW QCLs provides a collimated beam in a sealed housing.

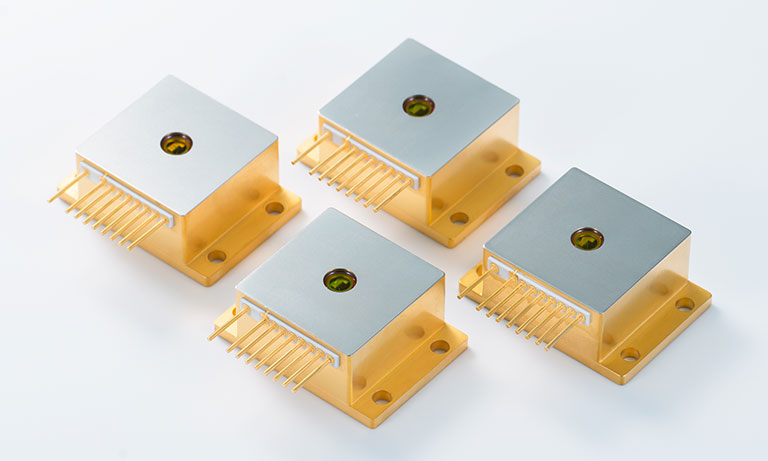

Single phonon resonance-continuum depopulation (SPC) and distributed feedback (DFB) structures realize stable single-mode emission at room temperature.

Line-up document "Devices for Gas Measurement" is now available!

Hamamatsu offers a wide range of light sources and detectors required for optical gas measurement. This document introduces suitable products and application examples for each measurement method.
