NanoZoomer S360 Digital slide scanner

C13220-01

The NanoZoomer series is a family of whole slide scanners that rapidly scan glass slides to convert them to digital data.

The NanoZoomer S360 is the latest high-throughput model, ideal for use in hospitals and clinical laboratories.



C13220-01 is a medical system in China and Taiwan. This is for RUO in other countries.



C13220-01 NanoZoomer S360 Digital slide scanner is not sold as the IVDD unit to EU region after May 27th in 2022.

Features

  • Scanning speed 20× mode (15 mm × 15 mm): approx. 30 s
  • Scanning speed 40× mode (15 mm × 15 mm): approx. 30 s
  • Max. 360 slides

Special sites

The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.

Whole Slide Imaging

Specifications

Product nameNanoZoomer S360
Product numberC13220-01
Scanning speeds: 20× mode (15 mm × 15 mm)Approx. 30 s
Scanning speeds: 40× mode (15 mm × 15 mm)Approx. 30 s
Throughput: 20× mode (15 mm × 15 mm)More than 82 slides/h *1
Throughput: 40× mode (15 mm × 15 mm)More than 82 slides/h *1
Objective lens20× (NA 0.75)
User can select 20× or 40× mode at start of scanning.
Compatible glass slide26 mm × 76 mm
Thickness 0.9 mm to 1.2 mm
Slide loader (standard size slide)360 slides (30 slides × 12 cassettes)
Scanning resolution: 20× mode0.46 μm/pixel
Scanning resolution: 40× mode0.23 μm/pixel
Focusing methodPre-focus map
Z-stack featureIncluded
Fluorescence imaging moduleNo
Barcode reader1D barcode (standard feature), 2D barcode (option)
Slide formatJPEG compressed image + slide information
Power supplyAC100 V to AC240 V
Power consumption (scanner only)Approx. 200 VA

*1 For the case of 5 focus points

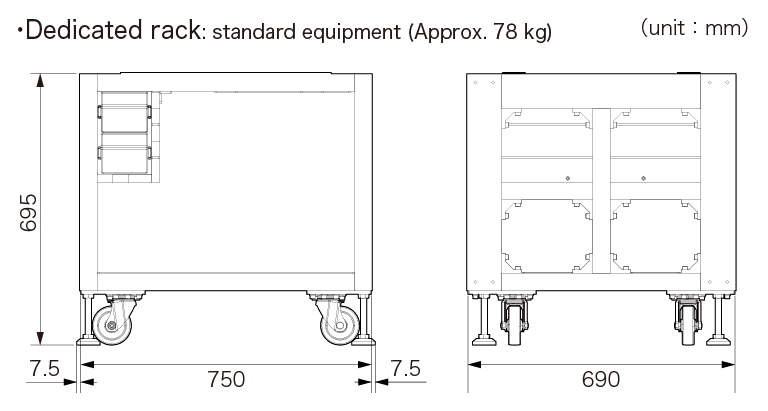

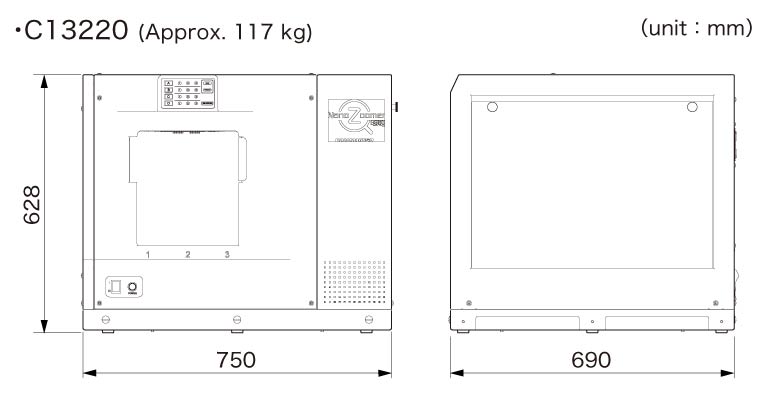

Dimensions

Important Notice

In EU, C13220-21MDEU is CE marked under EU‘s In Vitro Diagnostic Medical Device Regulation(IVDR) for in vitro diagnostic use.



In China, following products are registered for in vitro diagnostic use:

C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01  NanoZoomer S60 and C13140-01 NanoZoomer-SQ.



In Canada, C13220-31 NanoZoomer S360 has Medical Device License (License No. 97957).



In Taiwan,C13220-01 NanoZoomer S360 is registered as medical device.



In the US, Japan and other countries, NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purposes.
