NanoZoomer S20 Digital slide scanner C16300-01

The NanoZoomer series is a family of whole slide scanners that rapidly scan glass slides to convert them to digital data.

The NanoZoomer S20 is a compact, high-speed, and adaptable scanner.

Catalog 942 KB/PDF

Brochure 1.9 MB/PDF

Features
Special sites
Specifications
Dimensions
Important Notice

Features

High-speed Scanning

NanoZoomer S20’s scanning speed is as fast as our flagship S360.

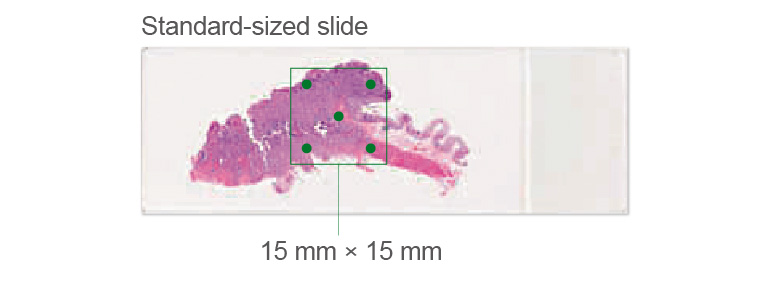

* When it scans an area of 15 mm × 15 mm square with 5 focus points.

Rapid Throughput

New slide handling mechanics allows for rapid handling of slides.

* When it scans an area of 15 mm × 15 mm square with 5 focus points.

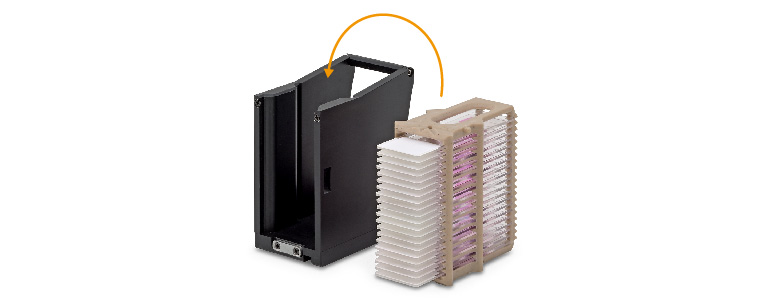

Flexible Slide Rack

Load directly from Sakura 4768 20-slide basket* and coverslipper for efficient scanner workflow.

*Sakura 4768 20-slide basket is an option.

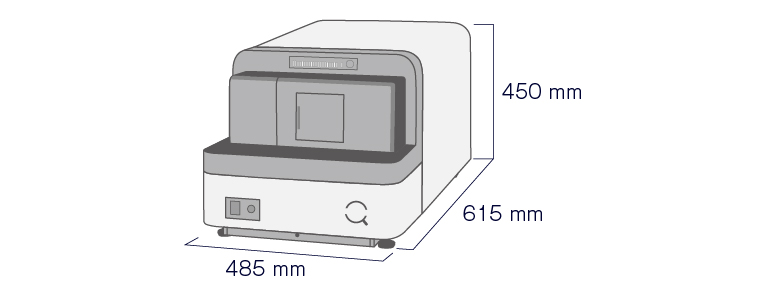

Scalable Benchtop Compact Scanner

Our compact scanner fits on a lab bench and is a scalable solution, as you can add more scanners as digitization needs increase.

*Tolerance of ±10 mm.

Special sites

The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.

Specifications

Product name		NanoZoomer^Ⓡ S20 Digital slide scanner
Product number		C16300-01
Scanning speed^* : (20× / 40× mode)		Approx. 30 s
Objective lens		20× NA 0.75 User can select 20× or 40× mode at start of scanning.
Compatible glass slides		25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm)
Slide loader (Standard-sized slide)		Up to 20 slides
Scanning resolution	20× mode	Approx. 0.46 μm/pixel
Scanning resolution	40× mode	Approx. 0.23 μm/pixel
Focusing method		Pre-focus map
Z-stack feature		Included
Image compression		JPEG compression
Readable barcodes	1D Barcodes	Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E
Readable barcodes	2D Barcodes	DataMatrix (ECC200) QR code (QR Code Model-2)
Power supply		AC 100 V to AC 240 V
Power consumption (Scanner only)		Approx. 150 VA

*When it scans an area of 15 mm × 15 mm square with 5 focus points.

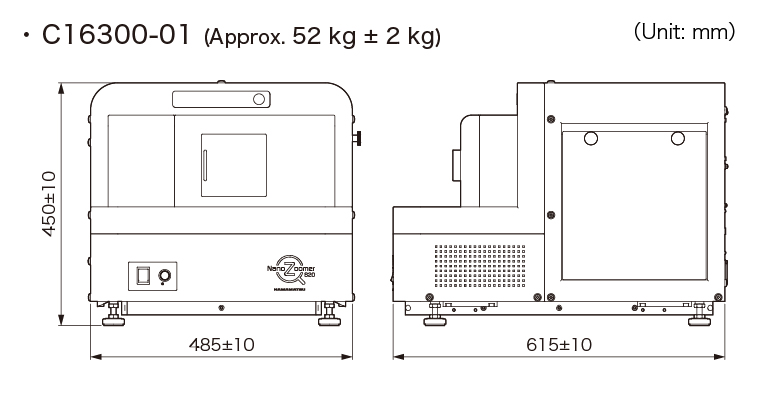

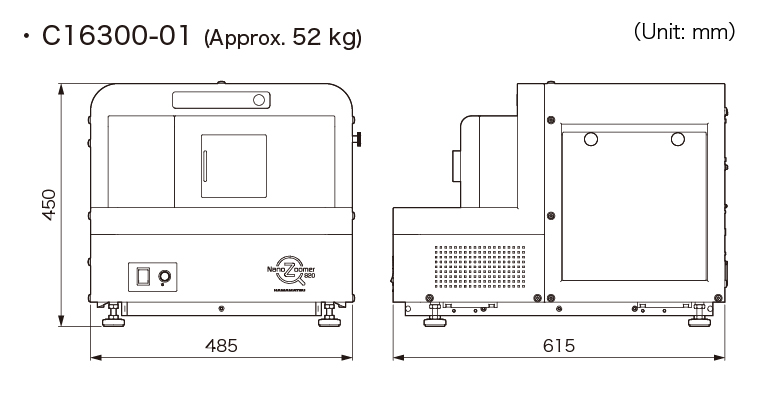

Dimensions

Important Notice

In the USA, C13220-01MD NanoZoomer S360MD Slide scanner system can be used for primary diagnosis in the following validated FDA-cleared displays:

・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.

・BARCO MDPC-8127 *The display itself is FDA cleared.

In Europe, following products are regulatory compliant for IVDR (EU), UKCA (UK) and IvDO (CH) for in vitro diagnostic use:

C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system.

In China, following products are registered for in vitro diagnostic use:

C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01 NanoZoomer S60 and C13140-01 NanoZoomer-SQ.

In Canada, C13220-31 NanoZoomer S360 has Medical Device License.

In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.

In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system is registered as in vitro diagnostic medical device.

In Japan, C13220-11MDJ NanoZoomer S360MD Slide scanner system and C16300-11MDJ NanoZoomer S20MD Slide scanner system are approved as medical devices.

For other countries, NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
