CMOS linear image sensor

S10226-10

Small, resin-sealed CMOS image sensor


Features
-Compact and high cost-performance
-Pixel pitch: 7.8 μm Pixel height: 125 μm
-1024 pixels
-Single 3.3 V power supply operation
-High sensitivity, low dark current, low noise
-On-chip charge amplifier with excellent input/output characteristics
-Built-in timing generator allows operation with only Start and Clock pulse inputs
-Video data rate: 200 kHz max.
-Spectral response range: 400 to 1000 nm

Type Resin-sealed type package
Image size 7.9872 x 0.125 mm
Number of effective pixels 1024 x 1 pixels
Pixel size 7.8 x 125 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 194 lines/s
Cooling Non-cooled
Window material Silicone resin
Package Glass epoxy
Measurement condition Typ. Ta=25 ℃, f(CLK)=800 kHz, Vdd=5 V: V(CLK)=V(ST)=5 V, Vdd=3.3 V: V(CLK)=V(ST)=3.3 V, unless otherwise noted

Spectral response

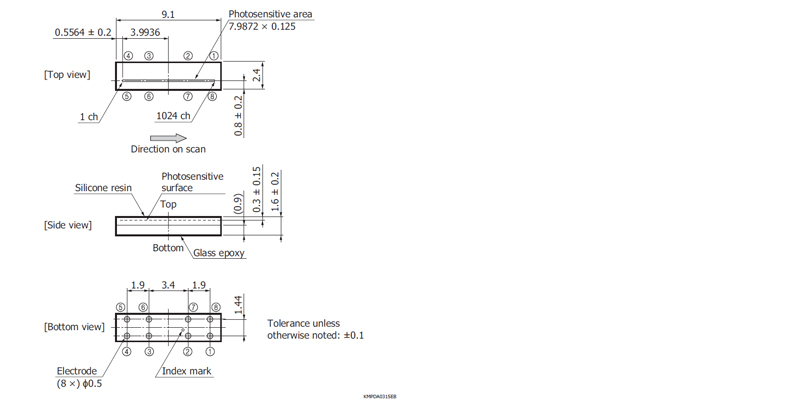

Dimensional outline (unit: mm)
