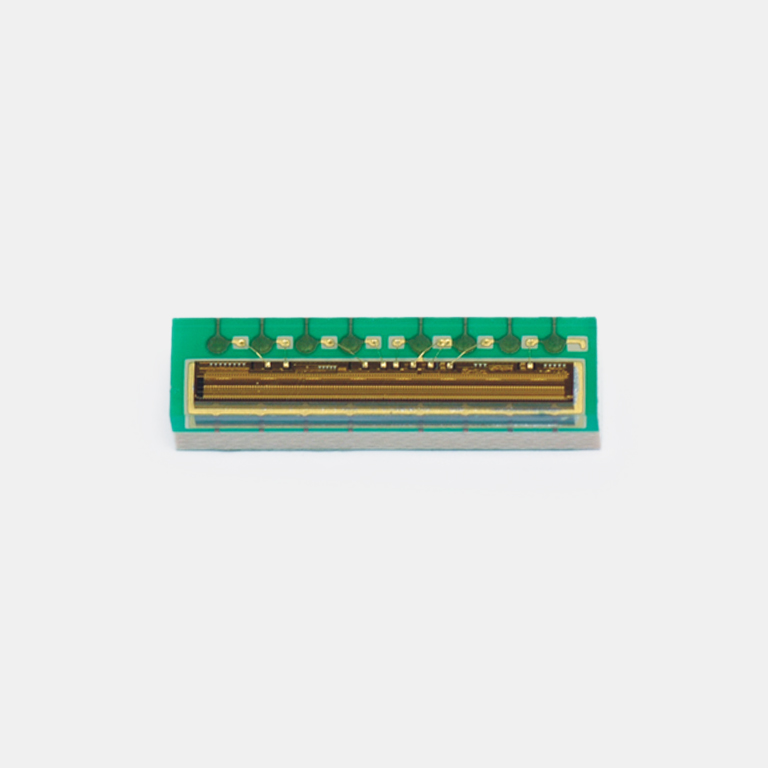

CMOS linear image sensor

S10227-10

Small, resin-sealed CMOS image sensor


Features
-Compact and high cost-performance
-Pixel pitch: 12.5 μm Pixel height: 250 μm
-512 pixels
-Single 5 V power supply operation
-Video data rate: 5 MHz max.
-Simultaneous charge integration
-Shutter function
-High sensitivity, low dark current, low noise
-Built-in timing generator allows operation with only Start and Clock pulse inputs
-Spectral response range: 400 to 1000 nm

Type Resin-sealed type package
Image size 6.4 x 0.25 mm
Number of effective pixels 512 x 1 pixels
Pixel size 12.5 x 250 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 9434 lines/s
Cooling Non-cooled
Window material Silicone resin
Package Glass epoxy
Measurement condition Typ. Ta=25 ℃, Vdd=5 V, V(CLK)=V(ST)=5 V, f(CLK)=5 MHz, unless otherwise noted

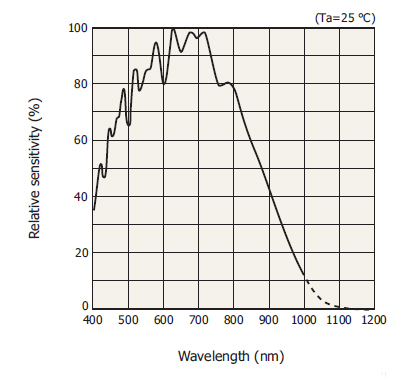

Spectral response

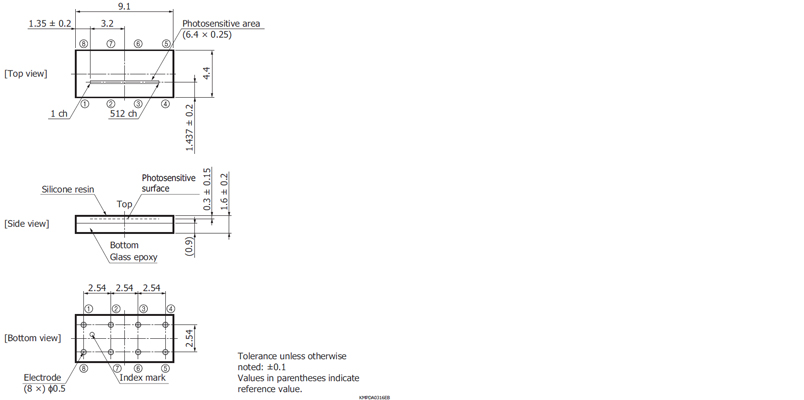

Dimensional outline (unit: mm)
