CMOS linear image sensor

S11107-10

Compact size and high cost-performance

The S11107-10 is CMOS linear image sensors of resin sealing type that delivers a video data rate of 10 MHz and low current consumption.


Features
-Compact size and high cost-performance
-Resin sealing type,
 surface mount package: 2.4 × 9.1 ×1.6t mm
-Pixel size: 127 × 127 μm
-64 pixels
-High-speed data rate: 10 MHz max.
-3 V or 5 V single power supply operation
-Built-in timing generator allows operation with only
 Start and Clock pulse inputs
-Low current consumption
-Allows simultaneous charge integration

Type Resin-sealed type package
Image size 8.06 x 0.127 mm
Number of effective pixels 64 x 1 pixels
Pixel size 127 x 127 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 119048 lines/s
Cooling Non-cooled
Window material Silicone resin
Package Glass epoxy
Measurement condition Typ. Ta=25 ℃, Vdd=3 V/5 V, V(CLK)=V(ST)=Vdd, f(CLK)=10 MHz, unless otherwise noted

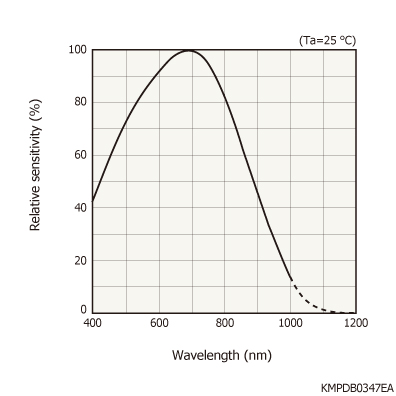

Spectral response

Dimensional outline (unit: mm)
