CCD linear image sensor
The S11155-2048-02 is back-thinned CCD linear image sensors with an internal electronic shutter for spectrometers. This image sensor uses a resistive gate structure that allows high-speed transfer. The pixel has a lengthwise size needed by spectrometers but ensures readout with low image lag. Image lag on these products is reduced by nearly a magnitude of 10 as compared to the previous product (S11155-2048-01). Note that the transmission of long wavelengths in the dead layer covering the horizontal shift register was reduced compared to previous product.
|Type||Built-in electronic shutter type|
|Image size||28.672 x 0.500 mm|
|Number of effective pixels||2048 x 1 pixels|
|Pixel size||14 x 500 μm|

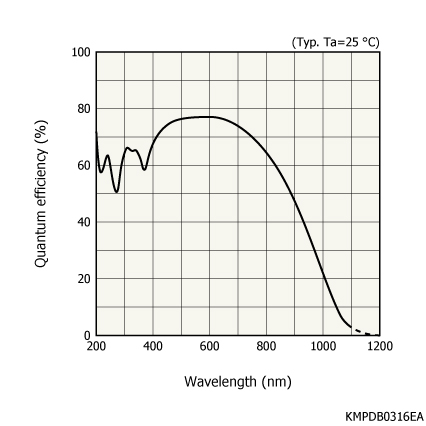

|Spectral response range||200 to 1100 nm|
|Line rate (typ.)||2327 lines/s|
|Line rate (max.)||4633 lines/s|
|Dark current (typ.)||10000 e-/pixel/s|
|Readout noise (typ.)||30 e- rms|
|Dedicated driver circuit||C11165-02|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, Dark current: MPP mode|
