CCD linear image sensor

S11156-2048-02

Back-thinned CCD image sensors with electronic shutter function

The S11156-2048-02 is back-thinned CCD linear image sensors with an internal electronic shutter for spectrometers. This image sensor uses a resistive gate structure that allows high-speed transfer. The pixel has a lengthwise size needed by spectrometers but ensures readout with low image lag. Image lag on these products is reduced by nearly a magnitude of 10 as compared to the previous product (S11156-2048-01). Note that the transmission of long wavelengths in the dead layer covering the horizontal shift register was reduced compared to previous product.


Features
-Built-in electronic shutter
-Minimum integration time: 2 us
-High sensitivity from the ultraviolet region (spectral response range: 200 to 1100 nm)
-Readout speed: 10 MHz max.
-Image lag: 0.1% typ.

Type Built-in electronic shutter type
Image size 28.672 x 1.000 mm
Number of effective pixels 2048 x 1 pixels
Pixel size 14 x 1000 μm
Spectral response range 200 to 1100 nm
Line rate (typ.) 2327 lines/s
Line rate (max.) 4633 lines/s
Dark current (typ.) 15000 e-/pixel/s
Readout noise (typ.) 30 e- rms
Cooling Non-cooled
Window material Quartz
Package Ceramic
Dedicated driver circuit C11165-02
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Dark current: MPP mode

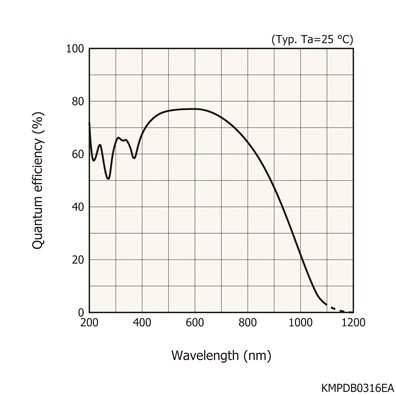

Spectral response

Dimensional outline (unit: mm)
