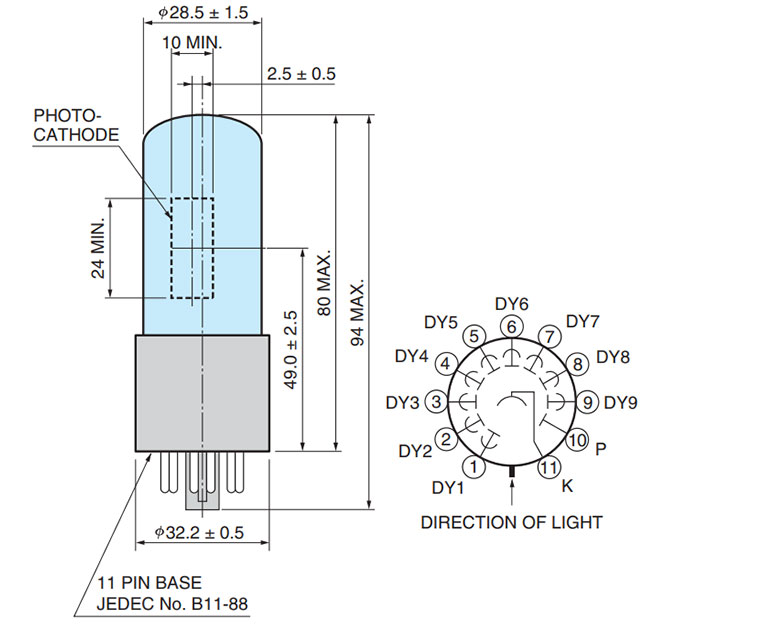

|Tube Size||Dia.28 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||10 x 24 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||710 nm|
|Wavelength (Peak)||410 nm|
|Spectral Response Curve Code||456U|
|Photocathode Material||Low noise bialkali|
|Window Material||UV glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||60 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||100 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||8|
|[Cathode] Radiant Sensitivity Typ.||70 mA/W|
|[Anode] Luminous Sensitivity Min.||500 A/lm|
|[Anode] Luminous Sensitivity Typ.||1000 A/lm|
|[Anode] Radiant Sensitivity Typ.||7.0 x 105 A/W|
|[Anode] Gain Typ.||1.0 x 107|
|[Time Response] Rise Time Typ.||1.2 ns|
|[Time Response] Transit Time Typ.||22 ns|
|Notes||Anode dark count (Typ.) : 10 (s-1) Anode dark count (Max.) : 50 (s-1)|
