SEMICONDUCTOR APPLICATION LAB. | Failure analysis system

What is SEMICONDUCTOR APPLICATION LAB. ?

SEMICONDUCTOR APPLICATION LAB. (located in Joko Factory, Hamamatsu City, Shizuoka Prefecture) is a laboratory designed for co-creation with customers. We have equipment to solve your problems, including semiconductor failure analysis and wafer testing.

*It may not work properly depending on your browser and settings.

Use cases for SEMICONDUCTOR APPLICATION LAB.

SEMICONDUCTOR APPLICATION LAB. is not only for customers using our products but also for those considering purchasing them.

We provide this Lab. as a place to use the equipment for those who would like to "try the equipment for purchase consideration," "learn how to operate the equipment before installation," or "learn how to use the equipment in an applied way". Also, for semiconductor companies to communicate with each other to "solve problems to improve the quality of semiconductors" or "exchange opinions to explore new analysis technologies.

Available products

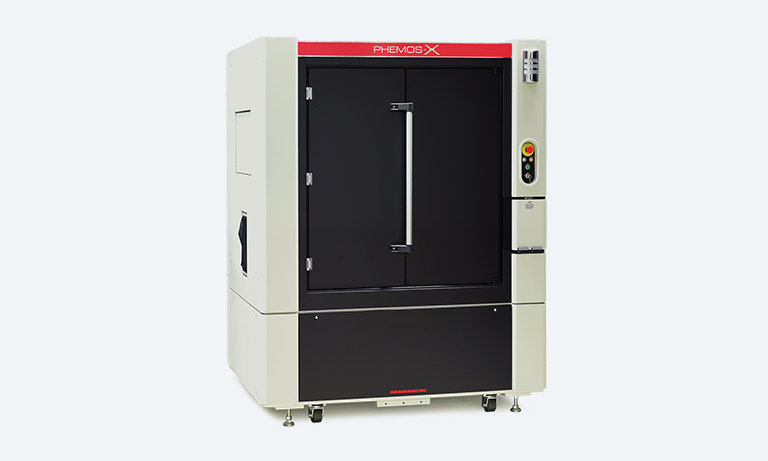

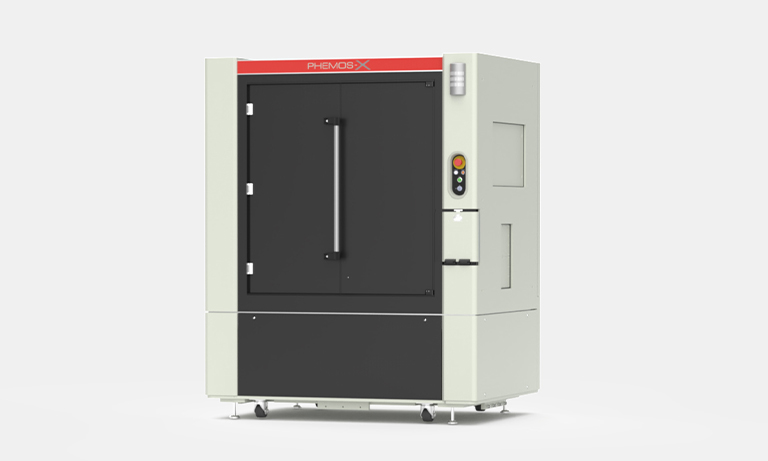

PHEMOS-X is a high-resolution emission microscope that captures light emission and heat generation caused by semiconductor device failures and identifies the failure location. It can be used for a wide range of applications from power devices to advanced device analysis.

PHEMOS-1000

PHEMOS-1000 Emission microscope C11222-16

PHEMOS-1000 is a high-resolution emission microscope that captures light emission and heat generation caused by semiconductor device failures and locates the failure location.



*Discontinued product

Thermal F1 Emission microscope C14229-01

Thermal F1 emission microscope is a space-saving heat generation image analyzer. It identifies failure locations by detecting heat generated by defects with high sensitivity.



*Discontinued product

Contact us for more information.
