Intraoral sensors for veterinary
In recent years, veterinarians are aiming to offer advanced healthcare and diagnostics for pets similar to the care humans can get. This includes dental care and diagnostics of teeth-related problems in pets. Increasingly, veterinarians now offer full intraoral radiography as part of their diagnostic portfolio. Hamamatsu's intraoral sensors are ideally suited for such demanding applications due to their high sensitivity, rugged design and excellent image quality. Check out our latest product lineup for veterinary intraoral use including our unique size 3 sensor, and feel free to contact us if you need further information.

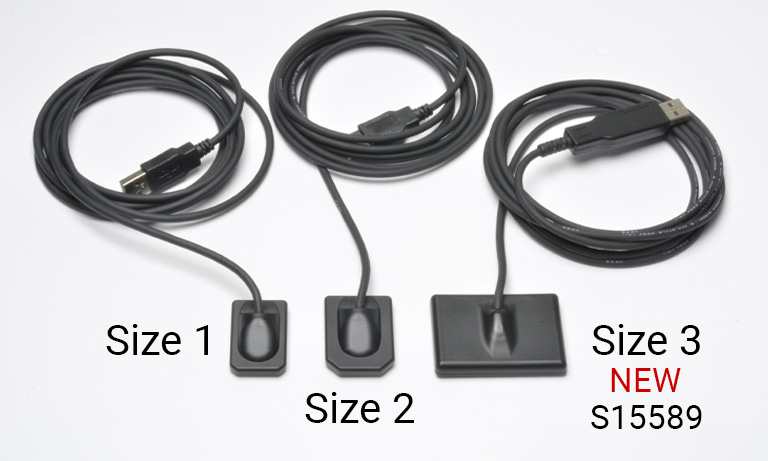

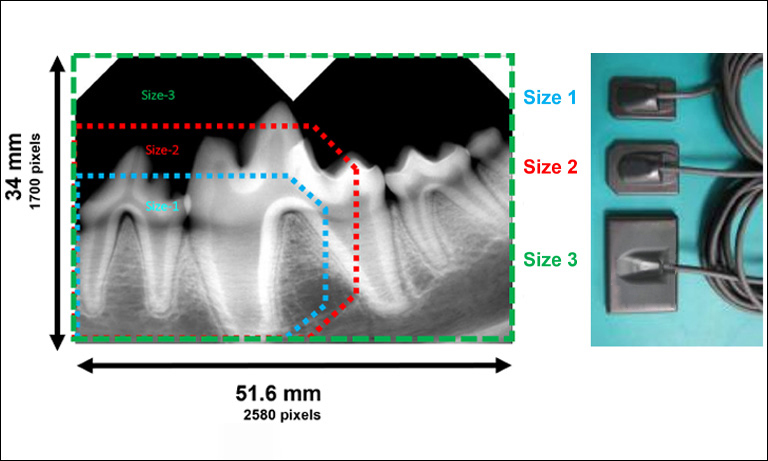

3 sizes of sensors
- Three generations of sensors available (size 1 & 2)
- High sensitivity to X-rays (only 300 µGy dose required)
- Built-in photodiode for detecting X-ray irradiation
- Power filter eliminates 5 V input power noise
- USB 2.0 compatible
- Demo software available to optimize and troubleshoot image quality
3 generations of sensors (size 1 & 2 only)
Generation 1

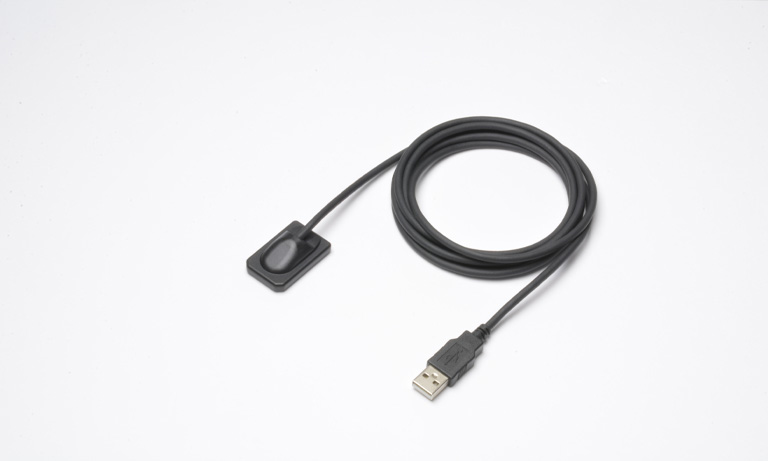

S11684-xx
S11685-xx
- 20 µm pixels
- Low noise APS CMOS design
- High resolution Csl scintillator
- USB 2.0 compatible
- Rugged housing
Generation 2
S15684-xx
S15685-xx
- Same as Generation 1 plus:
- Built-in input power filter
- Resettable fuse
- Extra rugged housing
Generation 3
S15584-xx
S15585-xx
- Same as Generation 1 plus:
- Built-in power filter
- Resettable fuse
- Extra rugged housing
- Memory
- FIFO
Specifications
| Generation | Gen 1 | Gen 2 | Gen 3 |
|---|---|---|---|
| Size 1 Size 2 |
S11684-xx S11685-xx |
S15684-xx S15685-xx |
S15584-xx S15585-xx |
| Typical resolution | 20 lp/mm | ||
| Built-in power filter | No | Yes | |
| Memory | No | Yes with correction file | |
| FIFO (frame memory) | No | Yes | |
| Software (.dll) | CMOS_USB.dll | IO_API.dll | |
| Housing shape | Thin | Rounded edges | |
| Extra ruggedized housing | No | Yes | |
Advantages of built-in power filter
Phantom images of dog's teeth with external disturbance.

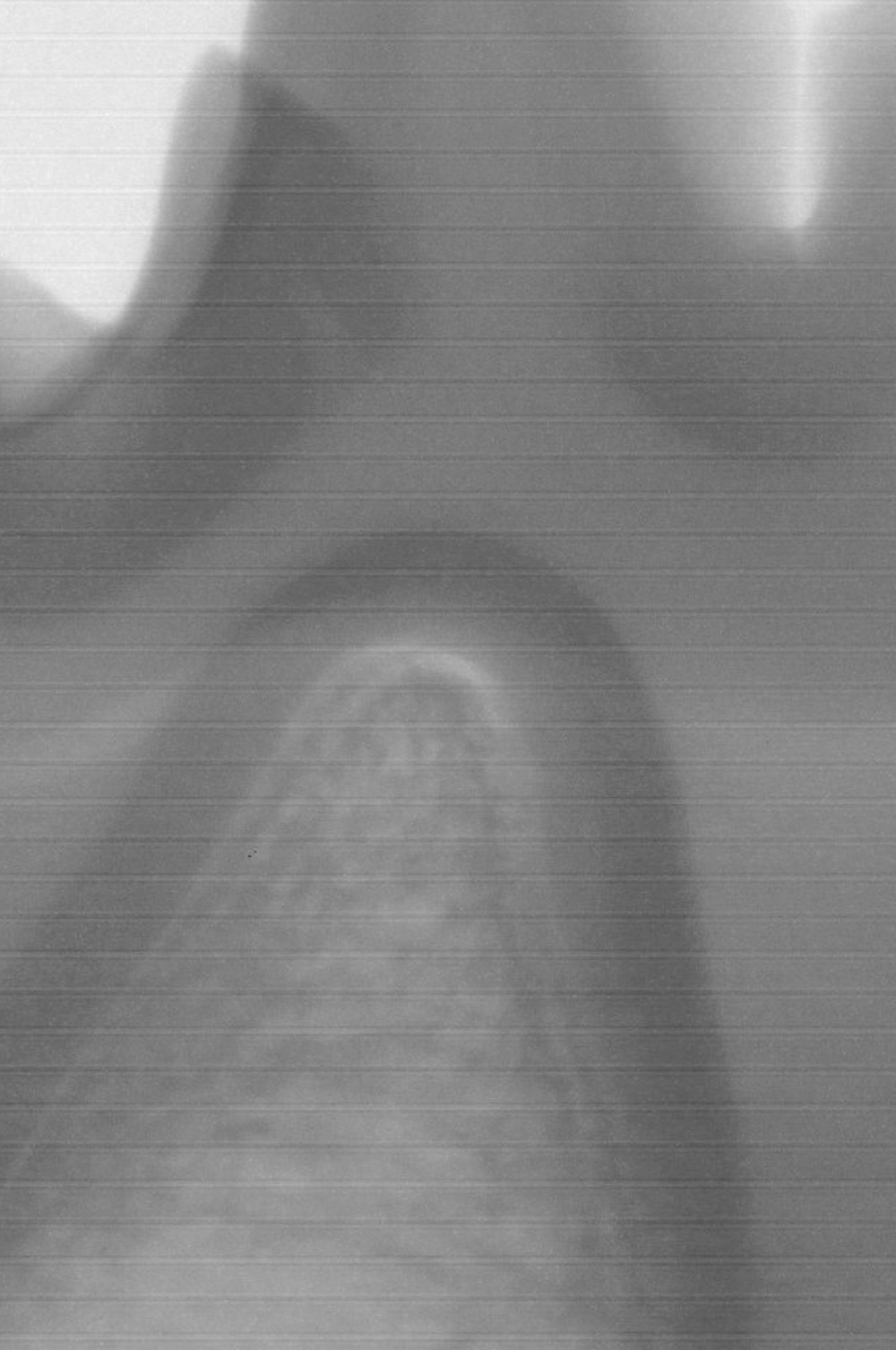

Image 1: Sensor without power filter (occasionally noisy image).
Image 2: Hamamatsu Gen 2 & Gen 3 sensors with built-in power filter (ensures noise-free images).

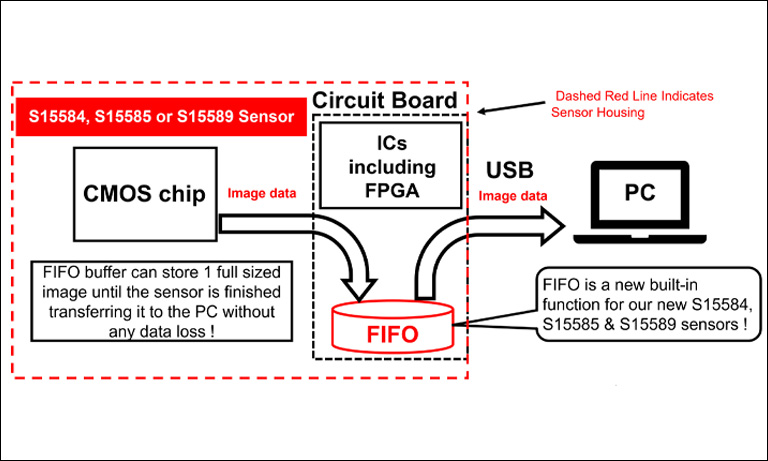

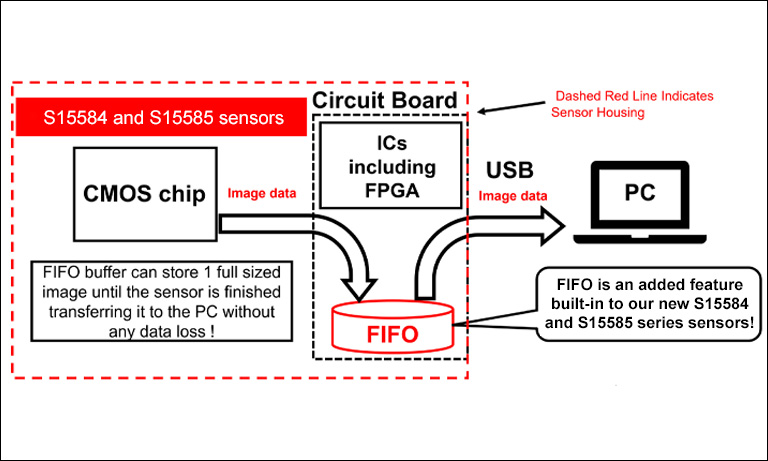

Why is FIFO frame memory necessary?
These days PCs and laptops are designed to operate the CPU in various power-saving modes when not performing tasks. This feature helps to preserve battery power and also helps extend the PC's life. However, running the CPU in a low power state may cause a delay in requesting data transfer from the sensor. Consequently, the PC may occasionally lose some of the image data, in which case the X-ray image would need to be retaken.
Previously, Hamamatsu created a countermeasure called “Processor Idle Disable” to protect against data loss, and this information is available in our application note, K44-B60015-1, which is available upon request. Although the PC's power consumption may increase, disabling the processor idle function can prevent data loss (image corruption).
Now Hamamatsu has developed an advanced solution that ensures 100% image integrity without these side effects, and has integrated this feature into our latest Gen 3 sensors. By incorporating FIFO buffer memory our Gen 3 sensors such as S15584, S15585 and S15589 can ensure complete image data transfer without any image corruption or data loss. So users will never have to worry about the need to retake X-rays, which is especially important when considering patient dose for human or veterinary dental use. Users can be sure to obtain reliable, high quality images with every shot, even if they have “processor idle” mode enabled on their PC or laptop.
Our Gen 3 sensors are ideal for veterinary

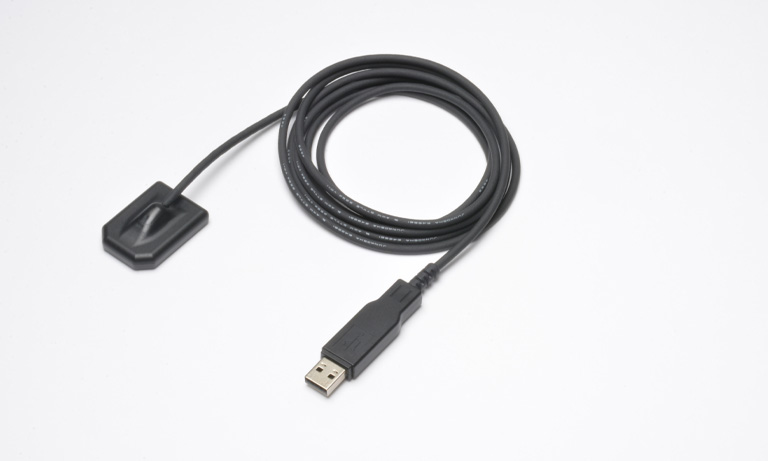

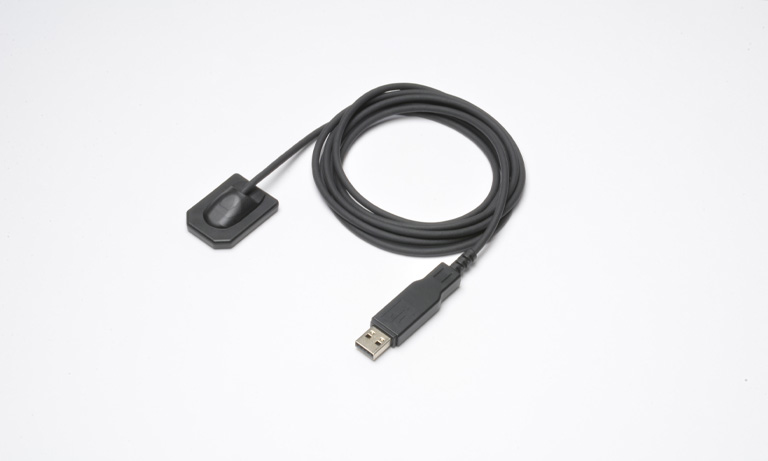

S15584-xx (size 1), S15585-xx (size 2)
Bite proof: Our new Gen 3 sensors have an extra ruggedized housing, making them practically bite proof.

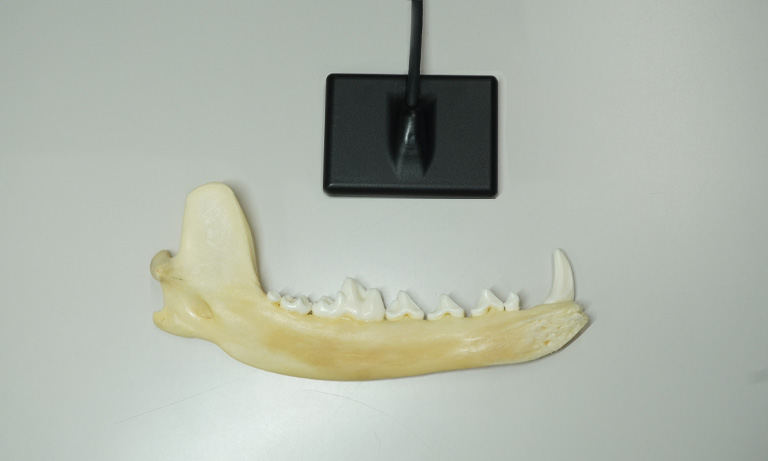

Phantom image of dog's teeth
Size 3 sensor S15589 key features
- Large area (51 x 34 mm)
- High resolution (20 lp/mm)
- Fast acquisition (approx. 6 sec)
- Ruggedized housing
- Built-in power filter
- Resettable fuse
- Built-in memory 1
- Built-in FIFO 2
- No seam in image 3
1 Memory to store flat field correction file (supplied by Hamamatsu)
2 FIFO to buffer image data and avoid data corruption
3 With recommended operating conditions
Size 3 sensor S15589 key specifications
| Items | Size 3 sensor |
|---|---|
| Pixel size | 20 μm |
| Effective area | (4.4 Mpix) 2580 x 1700 pixels |
| Housing style | 7.5 mm thick with round corners |
| Built-in power filter | Yes |
| Scintillator | Csl |
| Maximum X-ray tube voltage | 90 kV |
| Total maximum dose (at 60kv) | 100 Gy |
| Interface | USB 2.0 (2 m cable) |
| Environmental | IP67 equivalent housing |

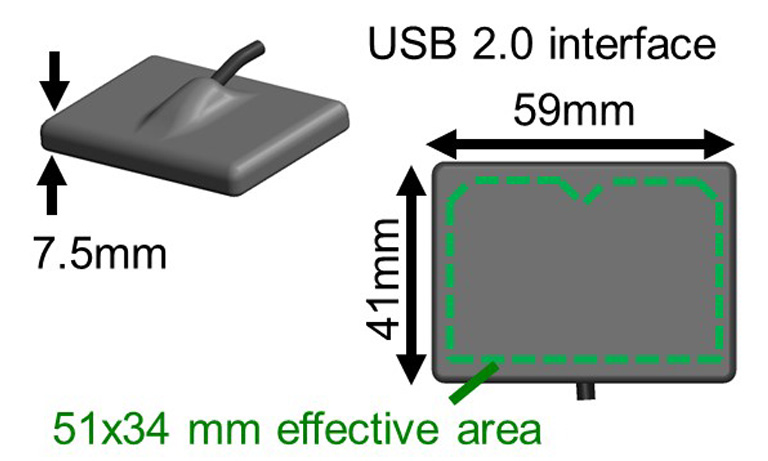

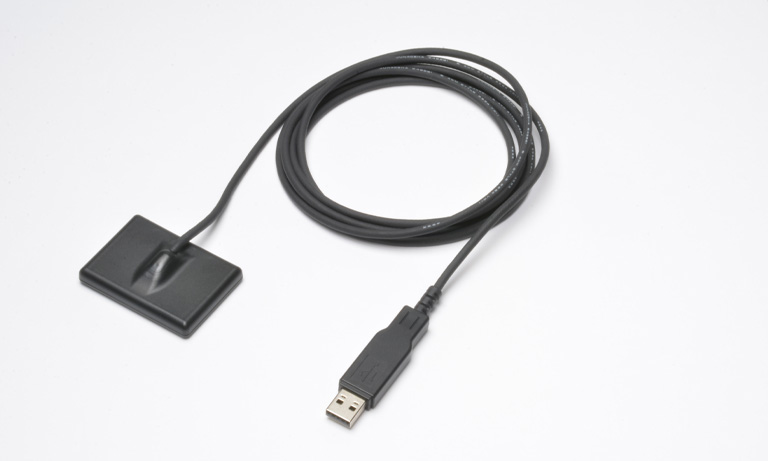

Size 3 sensor S15589 exterior
Size 3 S15589 image-stitching algorithm
The sensor has a 51 x 34 mm effective area and can capture multiple teeth at once.

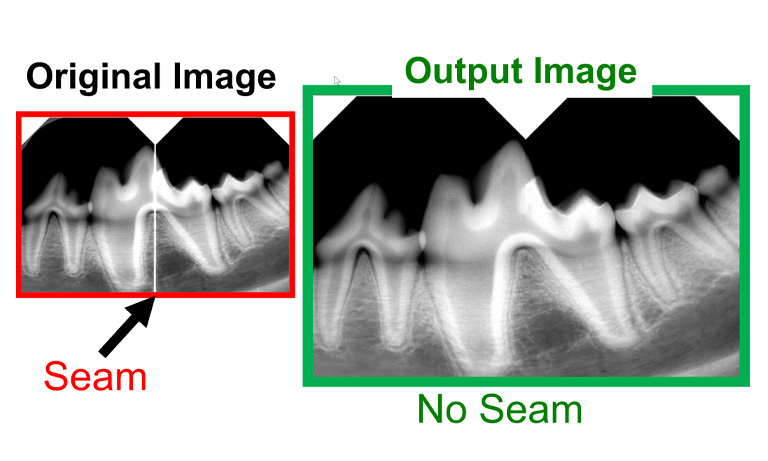

In addition, our unique size 3 sensor has an advanced image-stitching algorithm built-in that eliminates the seam between the 2 sensors inside.
Note: The seam artifact depends on the X-ray energy and dose, and may appear under certain operating conditions.

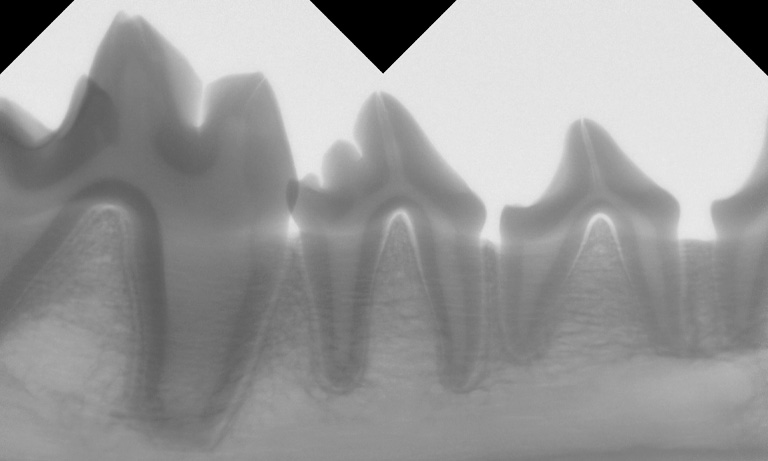

Phantom of dog's teeth. Our size 3 sensor provides a seamless image.
