IRMMW-THz 2026
The International Society of Infrared, Millimeter, and Terahertz Waves
| Event Name | IRMMW-THz 2026 |
|---|---|
| Dates | October 11-16, 2026 |
| Venue | The Cleone Peterson Eccles Alumni House Utah University, Salt Lake City, UT | Booth TBD |
| Official site | IRMMW-THz 2026 |
Come see us at IRMMW-THz 2026. Get a sneak peek into the future of terahertz and mid-infrared technology and discover how our products can reshape your projects and research endeavors.
Featured products:

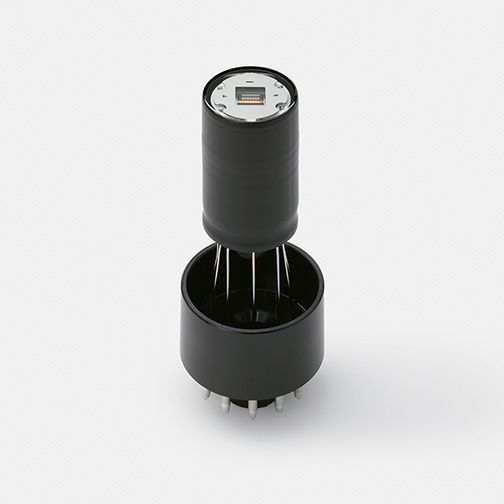

The R17201-01 is a photomultiplier tube (PMT) that utilizes metasurface technology for THz wave-to-electron conversion and has sensitivity in the THz wave region. It utilizes field electron emission technology leading to the output signal current changing non-linearly in accordance with the electric field intensity of the incident THz wave. This makes it possible to enhance and detect micro-changes in THz waves that had been difficult to detect with conventional detectors.

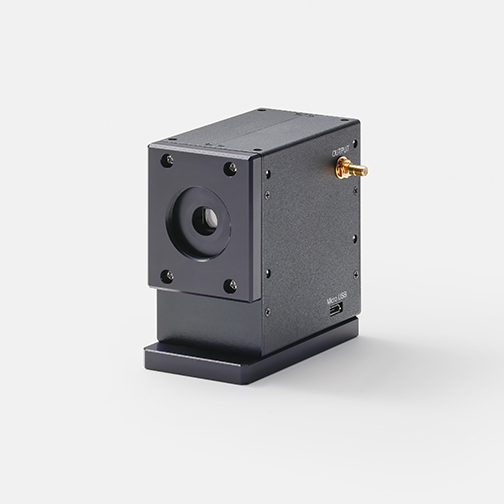

The H17362 is a photomultiplier tube (PMT) module that utilizes metasurface technology for THz wave-to-electron conversion and has sensitivity in the THz wave region. This THz PMT module incorporates a THz PMT, driver circuit, and high-voltage power supply into a compact housing. This makes it easy to handle even for those who are new to photomultiplier tubes and can be operated by simply connecting it to a PC via USB. It incorporates an attachment that can be easily installed on an optical table and a C-mount adapter for attaching optical components.

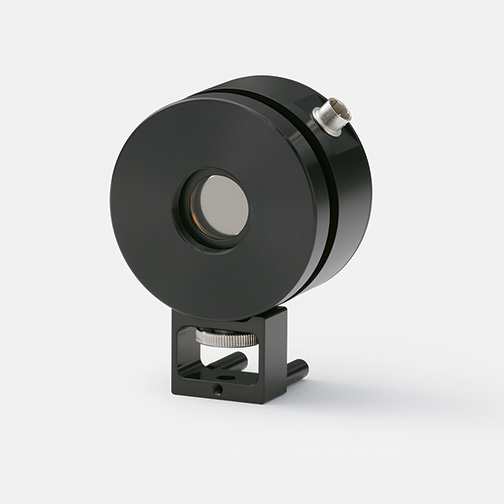

The C17198 is an imaging device that utilizes metasurface technology for THz wave-to-electron conversion and has sensitivity in the THz wave region. It is useful as "THz beam visualizer" for laboratory use, where it can visualize and observe invisible THz waves instantaneously. In addition, it is capable of high-speed imaging at up to 1000 fps, making it possible to image high-speed phenomena that had been difficult to capture with conventional thermal THz cameras.

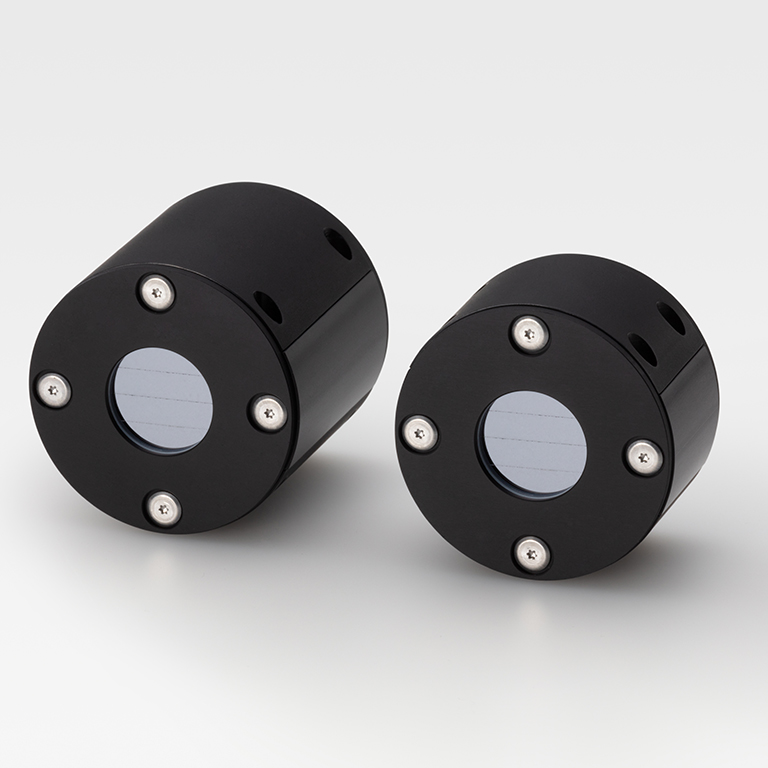

The A16394 series are Fresnel rhomb wave plates for controlling terahertz wave polarization. The adoption of Fresnel rhomb makes it possible to handle a terahertz wave over a broad band. In addition, stacking total reflection prisms simultaneously achieves a large aperture and a small size of the component. The prisms are made of high-resistivity silicon, which highly transmits a terahertz wave.

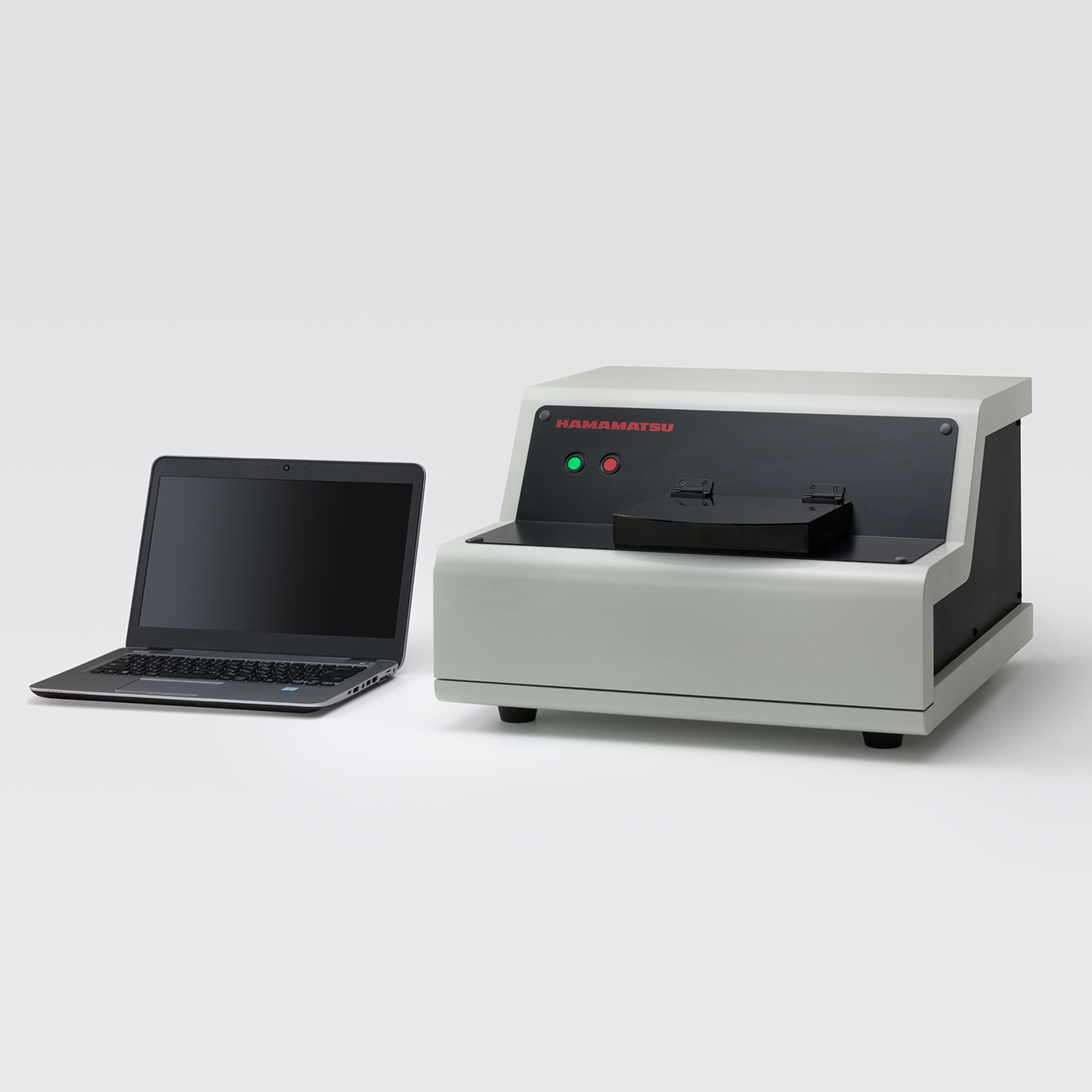

The C12068 series are an attenuated total reflection (ATR) spectrometer integrating a terahertz wave emitter, detector, and total reflection prism into a single unit. ATR spectroscopy using the C12068 series is unaffected by water vapor in the environment and ensures high stability and easy operability. Placing a liquid or powder sample on the measurement surface allows easily acquiring information on intermolecular vibrations and crystal lattice vibrations.
