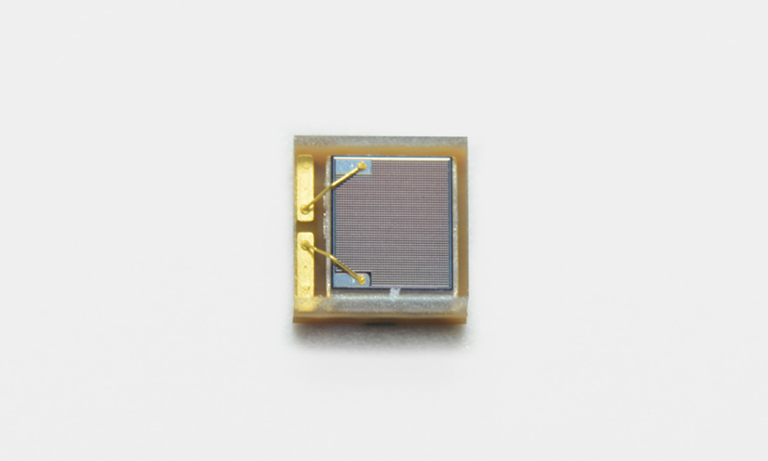

S15639-1325PS is a MPPC having high sensitivity in near infrared region for automotive LiDAR.
LiDAR is a remote sensing technology that measures distance by irradiating a laser light on objects and receiving the light reflected back with a photosensor.
Generally, the laser light having peak emission of near infrared (905 nm) is used for LiDAR. In case of measuring for a long distance accurately, high near infrared sensitivity and low afterpulse are required for the photosensors.
Newly released S15639-1325PS has realized high photon detection efficiency (9%) at near infrared region, and low afterpulse (1% max.).
・High photon detection efficiency: 9% (λ=905 nm)

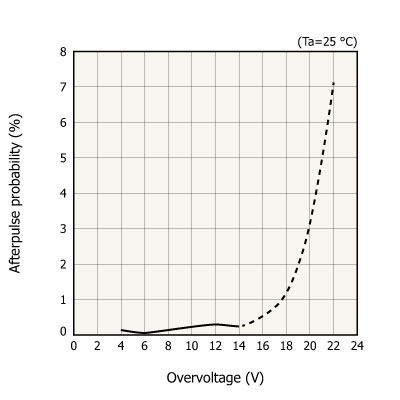

・Low afterpulse probability: 1% max.

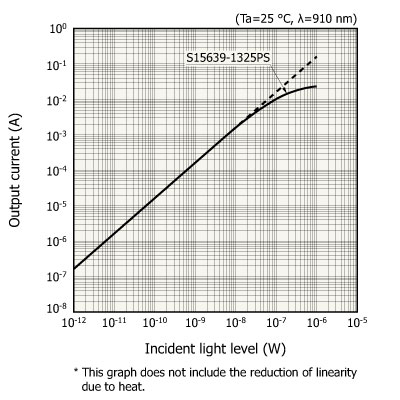

・Wide dynamic range
|Type no.||NEW S15639-1325PS||Unit|
|Operating temperature||-40 to +105||℃|
|Storage temperature||-40 to +125||℃|
|Effective photosensitive area||1.3 × 1.1||mm|
|Number of pixels||2120||-|

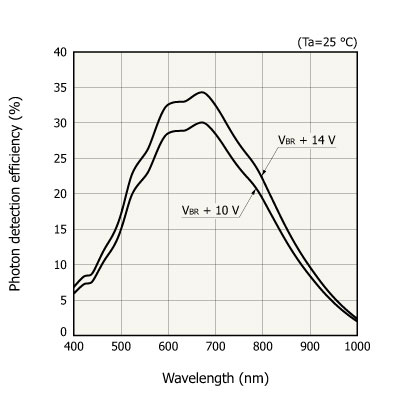

|Photon detection efficiency (λ=905 nm)||9 typ.||%|
|Breakdown voltage||42 typ.||V|
|Gain||1.3 × 106 typ.||-|
Hamamatsu offers a variety of devices for LiDAR, including pulsed laser diodes as light sources and Si APDs, InGaAs APDs, and MPPCs (SiPMs) as photosensors.
Hamamatsu Photonics supplies market-leading, high-quality and extremely reliable optical components that contribute to the advancement of vehicle safety, comfort and green technologies, as well as products to improve the manufacturing and automation of critical automotive components.
