Precision distance measurement: The role of Si APD S15415 series in optical range finders

2024/07/30
  • Hamamatsu Corporation

In the quest for precise and reliable distance measurement, optical range finders have emerged as indispensable tools across various industries. At the heart of these devices lies the Si APD (silicon avalanche photodiode) S15415 series, a key component that significantly enhances their performance.

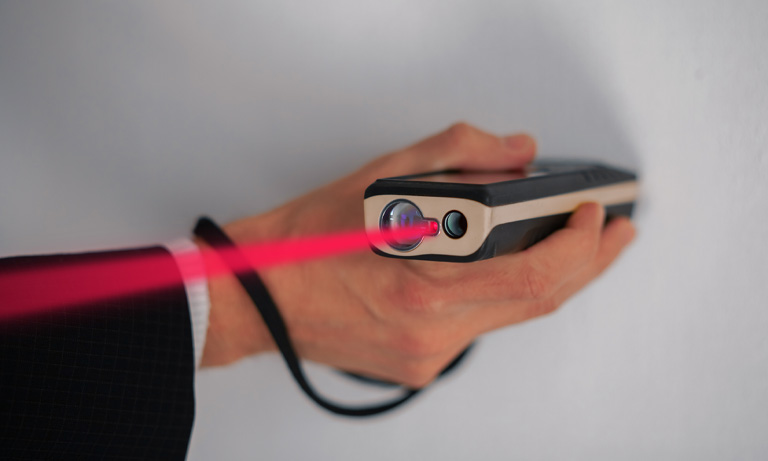

Laser range finder

The challenge: accurate distance measurement

Optical range finders operate by emitting a laser beam towards a target and measuring the time it takes for the reflected beam to return. This time-of-flight (TOF) measurement is then used to calculate the distance to the target with high accuracy. However, achieving precise measurements requires highly sensitive and efficient photodetectors capable of detecting the faintest light signals, and reliable amplitude measurements to determine the size and material of the reflecting surface. Si APDs have been used because the avalanche multiplication results in a higher sensitivity device. However, the multiplication factor is affected by the ambient temperature, thus affecting the stability and repeatability of the measurement. Traditionally, external temperature compensation is needed to stabilize the gain of the APD, requiring additional electronics and calibration to ensure good performance.

Enter the Si APD S15415 series

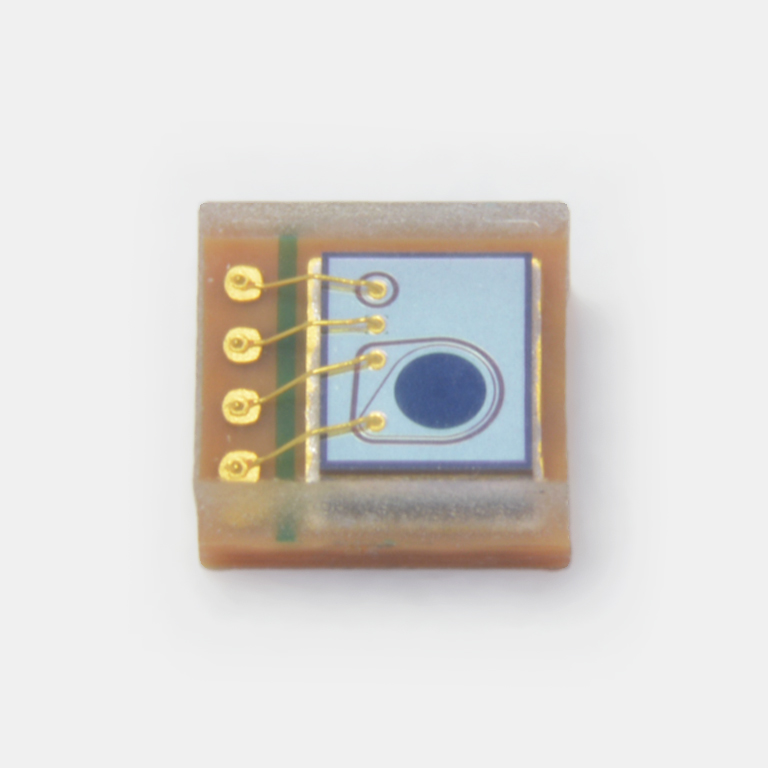

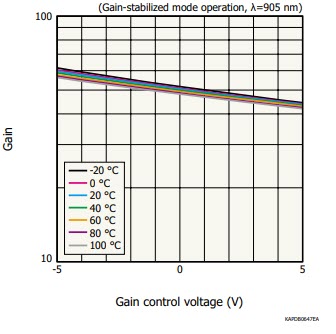

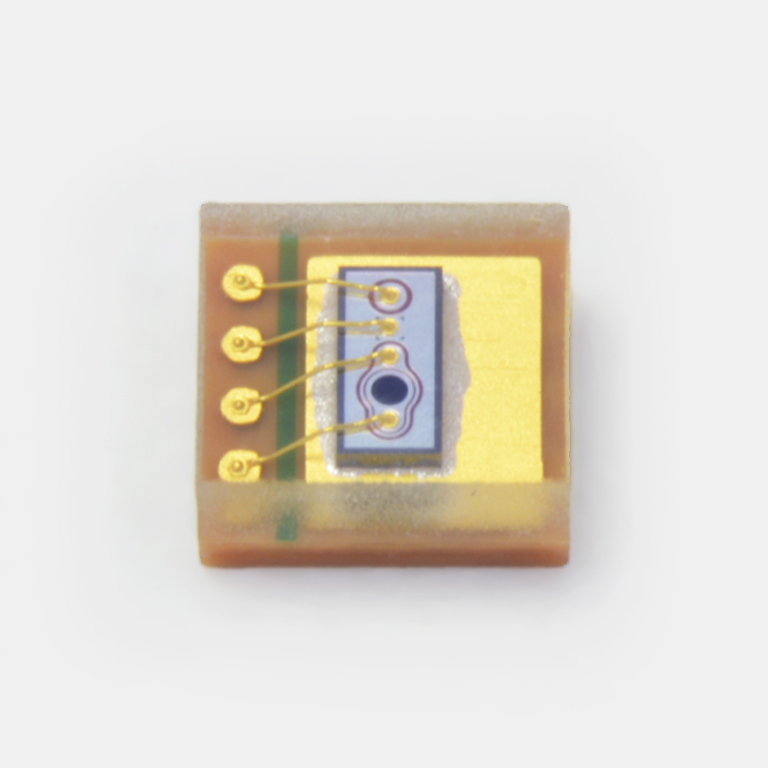

The Si APD S15415 series is designed specifically to meet the stringent demands of optical range finding. These avalanche photodiodes excel in converting light into an electrical signal, boasting high sensitivity and fast response times. Their ability to amplify weak light signals through the avalanche multiplication process makes them ideal for detecting the reflected laser beam, even from distant or low-reflective targets, but more importantly these APDs incorporate a unique gain stabilization feature which keeps the gain stable over a wide range of temperatures.

Integration into optical range finders

  1. Laser emission and reflection: When the optical range finder emits a laser pulse towards a target, the Si APD S15415 series is positioned to detect the reflected pulse. The photodiode's high sensitivity ensures that even minimal light signals are captured accurately.
  2. Signal amplification: As the reflected laser pulse hits the Si APD, the avalanche multiplication process kicks in. This process amplifies the initial weak signal, converting it into a stronger electrical signal that can be processed by the range finder’s electronics. The S15415's gain compensation feature ensures the multiplication factor is kept constant.
  3. Precise time measurement: The amplified signal is then used to measure the time interval between the emission and reception of the laser pulse. Thanks to the fast response time of the Si APD S15415 series, this measurement is incredibly precise, allowing for accurate distance calculation.
  4. Target identification: The amplitude of the returned signal is used to verify that the reflected signal is from the intended target instead of unwanted reflection from particles in the air.
  5. Distance calculation: Finally, the range finder’s processor calculates the distance to the target based on the time-of-flight data. The result is a highly accurate distance measurement, made possible by the superior performance of the Si APD S15415 series.

Applications and impact

Optical range finders equipped with the Si APD S15415 series find applications in a wide array of fields. In construction and surveying, they enable precise measurements of distances and heights. In robotics and automation, they facilitate accurate navigation and object detection. In defense and security, they enhance target acquisition and surveillance capabilities.

Conclusion

The integration of the Si APD S15415 series into optical range finders represents a significant advancement in distance measurement technology. By providing high sensitivity, fast response times, and reliable signal amplification, these photodiodes play a crucial role in ensuring that optical range finders deliver precise and dependable results across various applications. Whether measuring distances for construction projects, aiding in robotic navigation, or enhancing security measures, the Si APD S15415 series is a key enabler of modern optical range finding technology.
