Surface mount type short wavelength APD has been released

Si APD S17268 series

  • Hamamatsu Photonics K.K. Solid State Division

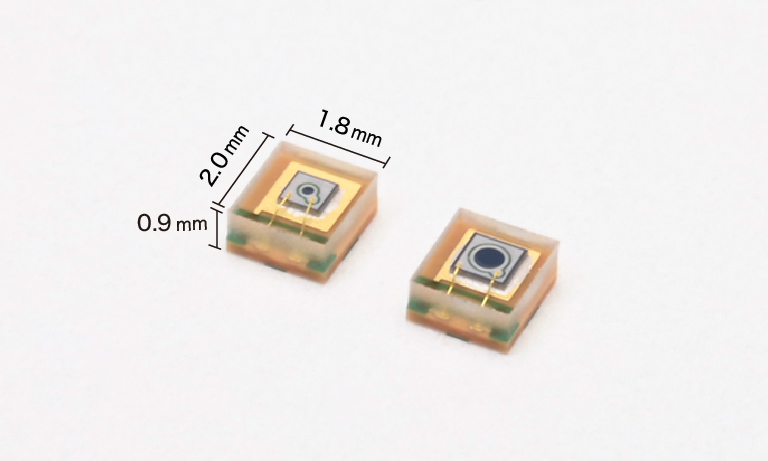

The S17268 series is surface mount type Si APD with high sensitivity in the short wavelength range. While maintaining performance equivalent to conventional TO-18 package products, it achieves more compact size and lower cost. With a high quantum efficiency of 82 % at 450 nm, it also enables low-noise and low-bias operation. With a compact size of 1.8 × 2.0 × 0.9 mm, it is suitable for integration into space-constrained devices such as optical rangefinders, industrial LiDAR, and flow cytometers. Two types with different photosensitive areas are available.

Features

  • Compact, surface mount type package
  • High short-wavelength sensitivity
  • Low bias operation: Breakdown voltage=160 V typ.
  • Low noise
  • High-speed response: Cutoff frequency=2 GHz typ.
    (S17268-02, λ=450 nm, M=50)

Applications

  • Optical rangefinders
  • Industrial LiDAR
  • Flow cytometry
  • Particle counters

Spectral response

Type No. S17268-02 S17268-05
Photosensitive area φ0.2 mm φ0.5 mm
Spectral response range 350 nm to 1000 nm
Photosensitivity
[λ=450 nm, M=1]
0.3 A/W
Cutoff frequency
[M=50, RL=50 Ω, λ=450 nm, -3 dB]
2.0 GHz 0.8 GHz
