Direct Diode Laser

L14133-05

A laser light source that condense light beams emitted from the internal LD stack module and directly irradiate them onto a target object.
In addition, since the cooling water temperature is 25 °C, there is little condensation even in a high temperature and high humidity environment, making it easy to handle.

Specifications

Parameter L14133-05
Peak emission wavelength 940 nm
Radiant power 5.0 kW
Operating current 108 A
Operating voltage 95 V
Focused beam size(FWHM) 1.25 mm × 0.35 mm
Dimensions(W × H × D) 165 mm × 160 mm × 414 mm
Weight Approx. 13

Features

  • Low power consumption
  • Compact, lightweight
  • Maintenance free
  • Optical fiber less
  • Cooling water temperature 25 °C

Applications

  • Metal processing
    (welding, hardening, brazing, cladding, etc.)
  • Pumping of solid state laser

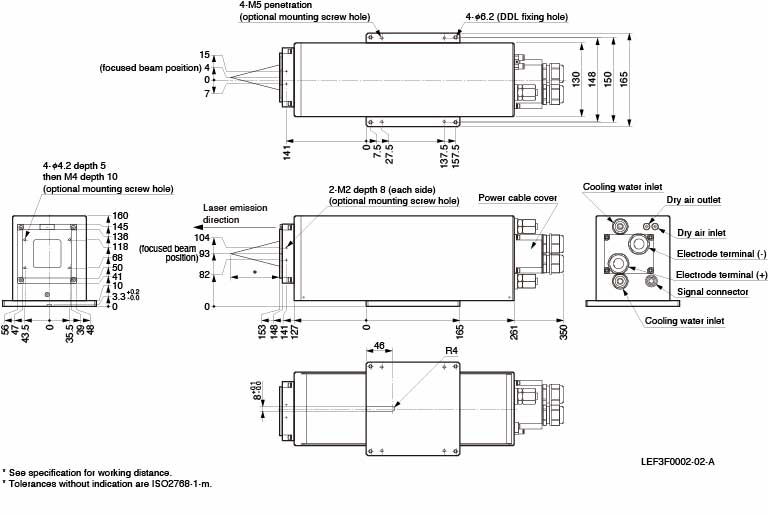

Dimensions (unit: mm)
