PLP-10 Laser diode head

M10306 series

The PLP-10 is an ultrashort pulsed light source that utilizes a laser diode (LD). It consists of a LD head and a controller.

11 types of LD head are available to accommodate various wavelengths, enabling optical output over a broad wavelength range of 375 nm to 1550 nm.

PLP-10 is ideal light source for measuring the response of a photodetector device, the characteristics of optical recording device or the lifetime measurement.

Optical output is selectable from window output or FC connector output.



Specifications

Type number M10306-27 M10306-29 M10306-49 M10306-33 M10306-35 M10306-37 M10306-43 M10306-45 M10306-51 M10306-21 M10306-23
Wavelength (nm) 375 405 445 465 483 510 655 785 885 1310 1550
Wavelength tolerance (nm) <±10 <±10 <±10 <±10 <±10 <±10 <±20 <±20 <±20 <±30 <±30
Spectral half-width (nm) <10 <10 <10 <10 <10 <10 <5 <10 <10 <20 <30
Pulse width (ps) max.80
typ.50
max.100
typ.60
max.100
typ.70
max.100
typ.70
max.120
typ.80
max.180
typ.130
max.100
typ.70
max.120
typ.100
max.100
typ.70
max.100
typ.70
max.100
typ.70
Beam divergence angle(Max. deg)* θ〃13
θ⊥26
θ〃12
θ⊥23
θ〃11
θ⊥29
θ〃13
θ⊥29
θ〃13
θ⊥27
θ〃13
θ⊥26
θ〃13
θ⊥18
θ〃10
θ⊥19
θ〃14
θ⊥20
θ〃25
θ⊥30
θ〃25
θ⊥30
Peak power (mW) typ.600
min.200
typ.400
min.200
typ.400
min.200
typ.180
min.80
typ.150
min.70
typ.50
min.20
typ.50
min.20
typ.70
min.30
typ.100
min.50
typ.20
min.10
typ.10
min.5
Type number M10306-28 M10306-30 M10306-50 M10306-34 M10306-36 M10306-38 M10306-44 M10306-46 M10306-52 M10306-22 M10306-24
Wavelength (nm) 375 405 445 465 483 510 655 785 885 1310 1550
Wavelength tolerance (nm) <±10 <±10 <±10 <±10 <±10 <±10 <±20 <±20 <±20 <±30 <±30
Spectral half-width (nm) <10 <10 <10 <10 <10 <10 <5 <10 <10 <20 <30
Pulse width (ps) max.80
typ.50
max.100
typ.60
max.100
typ.70
max.100
typ.70
max.120
typ.80
max.180
typ.130
max.100
typ.70
max.120
typ.100
max.100
typ.70
max.100
typ.70
max.100
typ.70
Peak power (mW) typ.250
min.85
typ.200
min.100
typ.200
min.100
typ.90
min.40
typ.70
min.35
typ.25
min.10
typ.20
min.8
typ.30
min.10
typ.50
min.25
typ.10
min.5
typ.5
min.2
*Measured using a window output type.θ⊥: the value of LD head with CAUTION label upper surface.
The above value is measured with 100 MHz. The values can be changed depending on the frequency. The PLP head should be selected according to wavelength and output form and can be exchangeable with the controller C10196. It is necessary to adjust the PLP head for the controller. FC connector type comes with APC polished quarts fiber(GI 50/ 125, 2 m).

《Controller for PLP-10 C10196》

Repetition frequency: Internal trigger 100 MHz, 50 MHz, 20 MHz, 10 MHz, 5 MHz, 2 MHz, 1 MHz,
500 kHz, 200 kHz, 100 kHz, 50 kHz, 20 kHz, 10 kHz, 5 kHz, 2 kHz, 1 kHz,
500 Hz, 200 Hz, 100 Hz, 50 Hz, 20 Hz, 10 Hz, 5 Hz, 2 Hz
Repetition frequency: External trigger Single shot to max. 50 MHz
External trigger input: Amplitude - 4 V to + 4 V (50 Ω)
External trigger input: Minimum pulse width 10 ns
Synchronous trigger output: Amplitude (Selectable) + 2 V to + 3 V (50 Ω) or - 500 mV to - 700 mV (50 Ω) (selectable)
Synchronous trigger output: Pulse width 5 ns ±3 ns
Synchronous trigger output: Timing Before or after optical output (selectable)
Synchronous trigger output: Delay time Ref (0 ns)*, 20 ns, 40 ns, 60 ns, 80 ns, 100 ns
Line voltage AC100 V~AC 240 V、50 Hz/60 Hz
Power supply AC 90 V~AC 264 V
Power consumption Approx. 90 VA



*Ref (0 ns) does not define zero time difference of synchronized signal and optical output with selecting Ref.

Dimensions

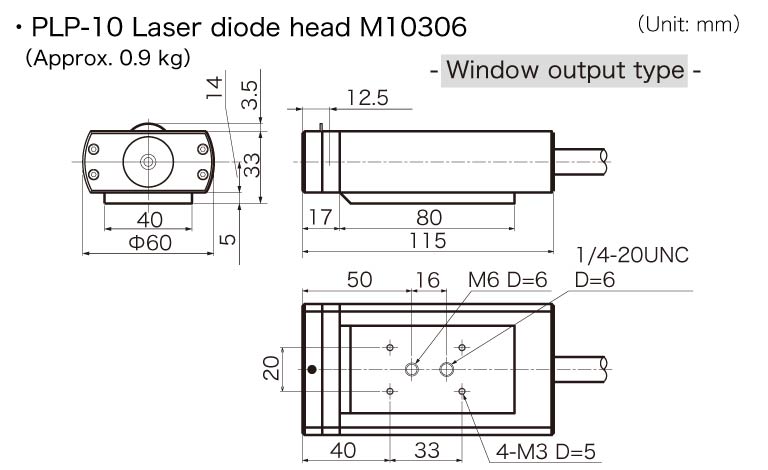

M10306 Window output type dimensional outline

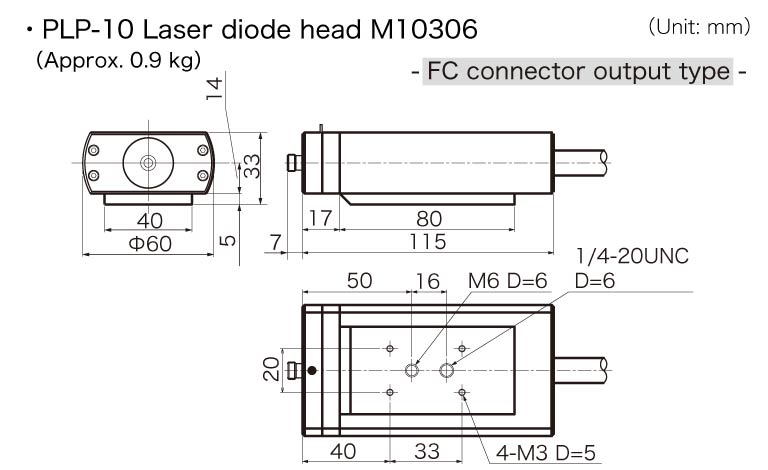

M10306 FC connector output type dimensional outline

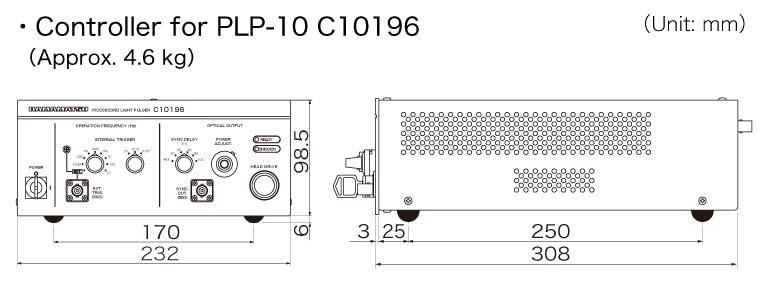

c10196 dimensional outline
