Supercontinuum white light lasers
The supercontinuum white light lasers are a white light laser source capable of outputting broadband laser light. They provide high-quality light over an extremely wide wavelength range and are suitable for various applications such as bioimaging and semiconductor inspection.
SuperK series – Supercontinuum white light lasers
SuperK series by NKT Photonics is a white light laser source capable of outputting broadband laser light.
Robust and highly reliable, it is widely used by cutting-edge companies in fields such as bioimaging, semiconductor inspection, sorting, device characterization, and scientific measurements. It is also suitable for replacing multiple single-wavelength lasers or broadband sources (such as ASE sources, SLEDs, and lamps).
The SuperK series provides collimated (parallelized) bright diffraction-limited light over a wide spectral range. With picosecond pulses in the MHz range and adjustable repetition rates and delays, it offers high-quality light across an extremely broad wavelength range, making it flexible for various applications.

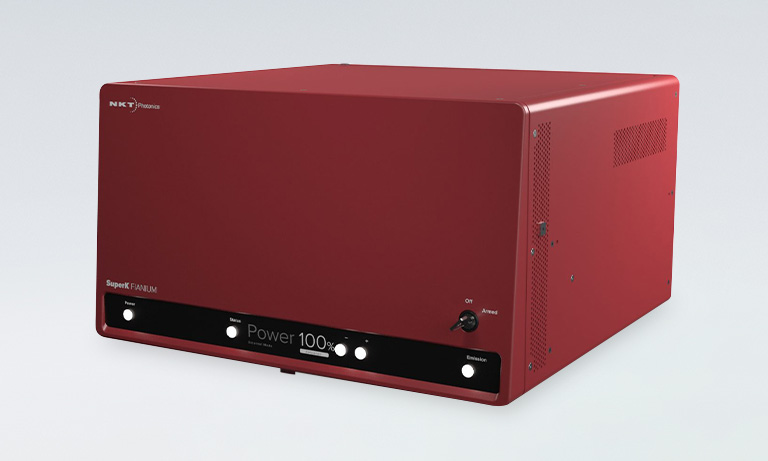

Tunable Broadband Supercontinuum Laser
- Broadband 390-2400 nm
- Up to 10 W depending on wavelength
- Variable repetition rate
- Tunable with one of our filters
- Excellent beam quality, M² < 1.1
- Plug & Play
- Simple user operation
- Robust, maintenance-free
- Simple user interface via NKT Photonics CONTROL

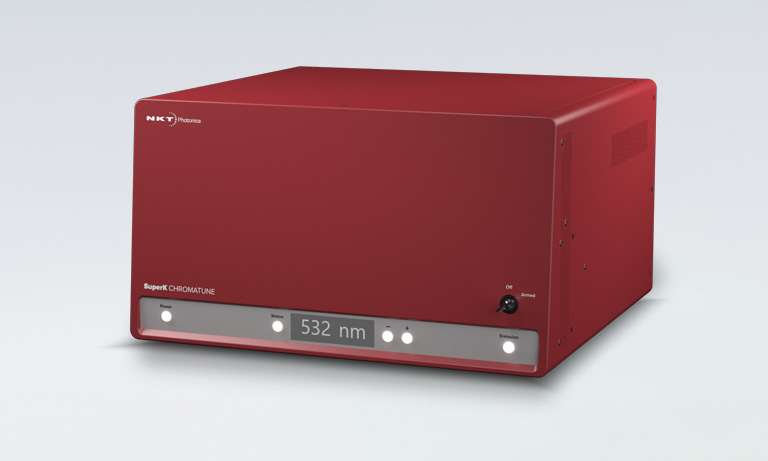

High-end Supercontinuum Laser
- Tunable from 400-1000 nm
- Constant output power
- On-the-fly variable repetition rate
- Alignment & maintenance-free
- Free software development kit
- Simple user interface via NKT Photonics CONTROL
- Inbuilt scripting functionality

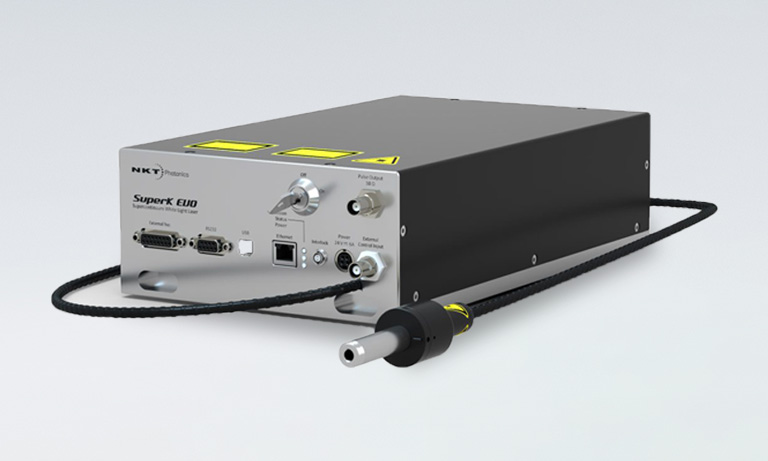

Industrial Supercontinuum Laser
- Broadband 415-2250 nm
- Tunable with one of our filters
- Versatile Plug & Play filters
- Cost-efficient industrial laser platform
- High brightness and repetition rate
- Free software development kit
- Maintenance-free 24/7 operation
- Simple user interface via NKT Photonics CONTROL

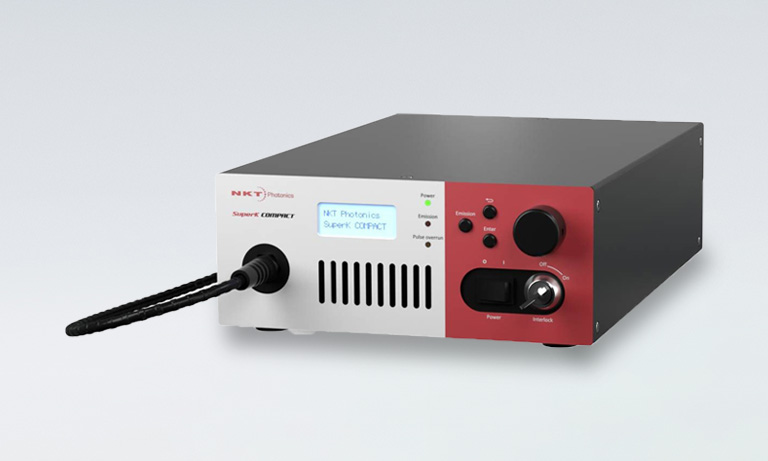

Cost-effective Supercontinuum Laser
- Broadband 450-2400 nm single-mode output
- Tunable with one of our filters
- Versatile Plug & Play filters
- High brightness and long lifetime
- Variable repetition rate
- Input pulse trigger
- Visible to IR light in one module
- Cost-efficient broadband source
- Maintenance-free 24/7 operation
- Simple user interface via NKT Photonics CONTROL
SuperK related products

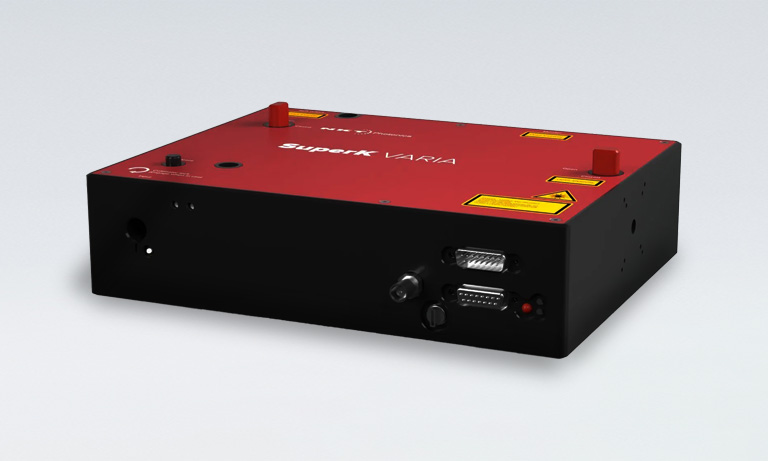

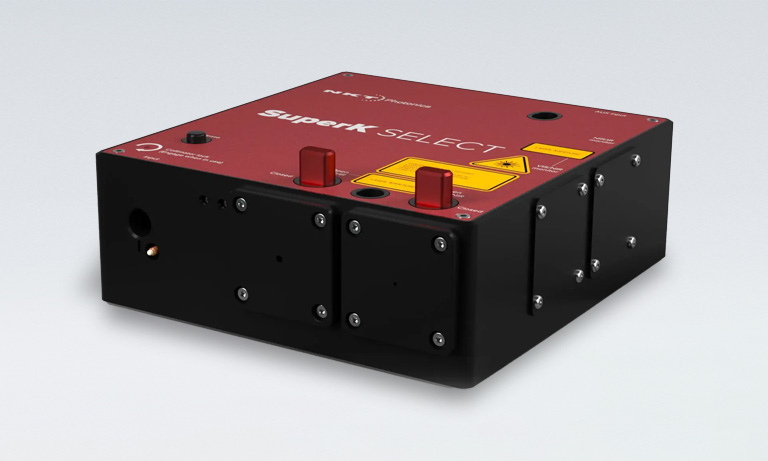

Single-line Tunable Filter
- 400-840 nm tuning range
- 10-100 nm bandwidth
- >50 dB out-of-band suppression
- High transmission, no polarization loss
- IR pass-through port
- Plug & Play with SuperK lasers
- Simple user interface via NKT Photonics CONTROL

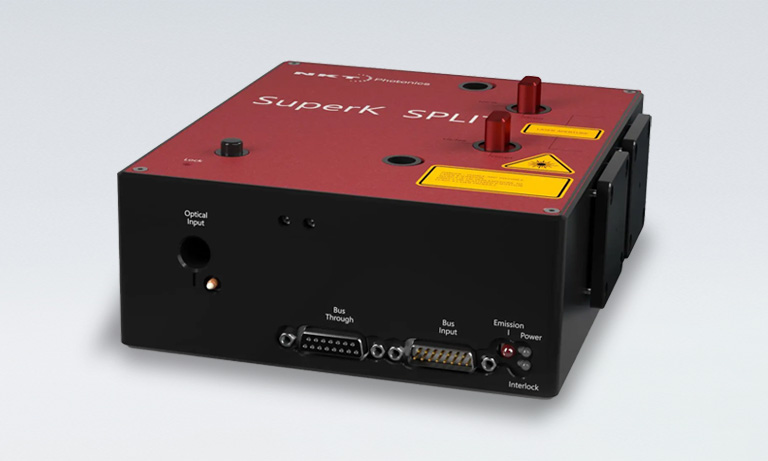

Dichroic Splitter
- Separate visible and IR ranges
- Additional filters/polarizers
- Manual shutters for port control
- Free-space, collimated beam output (standard) or fiber coupled (option)
- Plug & Play with SuperK lasers
- Robust and maintenance-free industrial design
- Maintenance-free 24/7 operation
Multi-line AOTF Tunable Filter
- 400-2000 nm tuning range
- 16 simultaneous, tunable channels
- Dual VIS/nIR, nIR/IR port access
- Robust and maintenance-free
- Plug & Play with SuperK lasers
- Simple user interface via NKT Photonics CONTROL

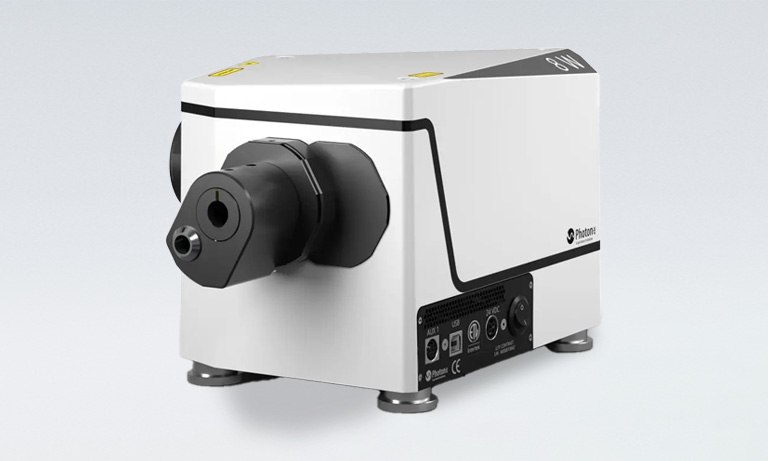

High-resolution Single-line Tunable Filter
- Single channel tunable band-pass filter
- Exceptional out-of-band suppression
- Narrow line-width and high resolution
- Wideband tuning range across the visible and near-infrared range
- Simple user interface
- Robust industrial design

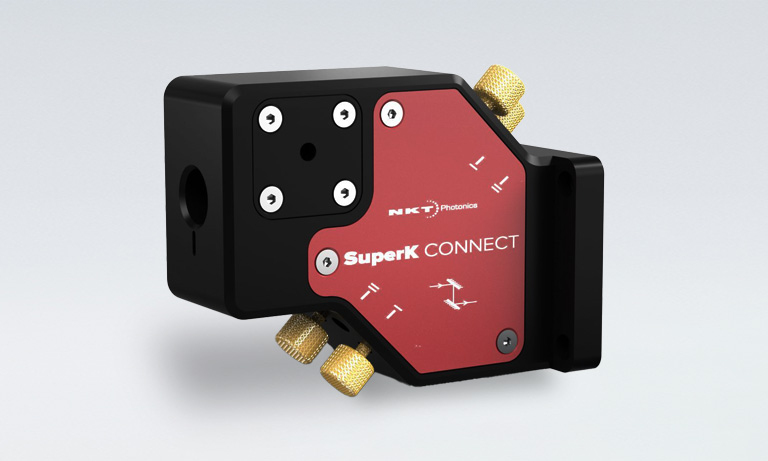

Fiber Delivery System
- Easy Plug & Play fiber delivery
- 400-2400 nm coverage
- High power levels of 500 mW
- FC/PC, FC/APC or collimated output
- Precision fiber coupling unit for stable alignment
- The best coupling efficiency available
- PM or non-PM
About NKT Photonics A/S
NKT Photonics A/S, headquartered in Copenhagen, Denmark, is a group company of Hamamatsu Photonics and a manufacturer of fiber lasers. The company possesses unique photonic crystal fiber manufacturing technology, which is used for ultrashort pulse laser amplification and fiber transmission.
In addition to photonic crystal fibers, NKT Photonics offers key products that leverage this core technology, including supercontinuum light sources, single-frequency fiber lasers, and ultrashort pulse lasers.
Their laser products, known for their exceptional features, are utilized across a wide range of markets, including medical and life sciences, industrial sectors such as semiconductors, and quantum-related fields.
NKT Photonics website
Top page https://www.nktphotonics.com/
Local contact page https://www.nktphotonics.com/contact/find-your-local-contact/
