CW laser diode

L8763-42

High-power CW laser diode



These diodes generate higher output power, operating in multiple lateral modes.
The most suitable LD can be selected from an assortment of wavelengths, size of emitting areas, output power, etc.

Peak emission wavelength (min.) 798 nm
Peak emission wavelength (typ.) 808 nm
Peak emission wavelength (max.) 810 nm
Radiant flux (typ.) 1 W
Operating current (typ.) 1.2 A
Operating voltage (typ.) 2 V
Spectral half width (typ.) 2 nm
Beam spread angle (Horizontal) (typ.) 8 °
Beam spread angle (Vertical) (typ.) 32 °
Threshold current (typ.) 0.35 A
Emission area 50 μm × 1 μm
Package Metal (φ9.0 CD)
Operating temperature 0 ℃ to +30 ℃
Storage temperature -30 ℃ to +80 ℃

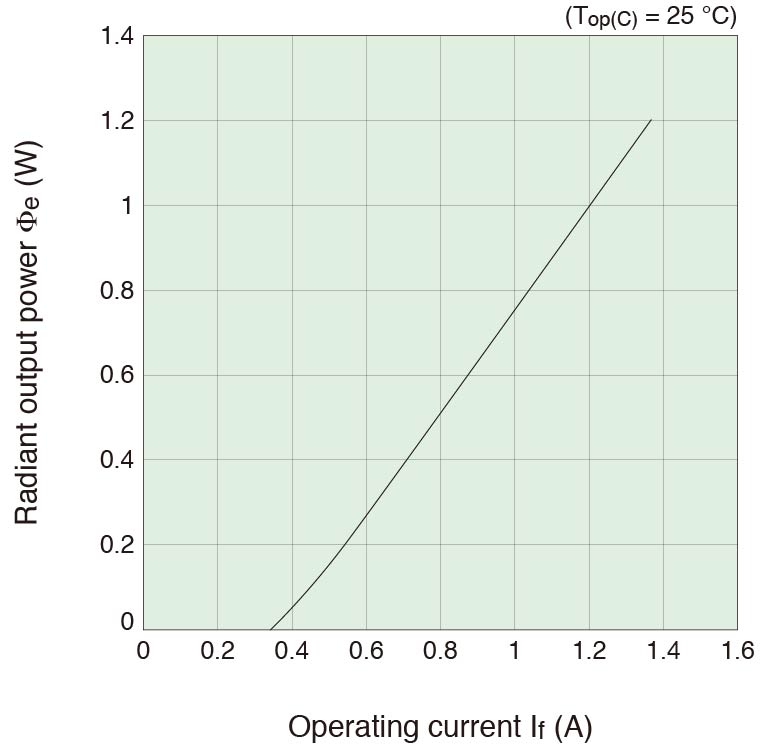

Radiant flux vs. forward current (typical example)

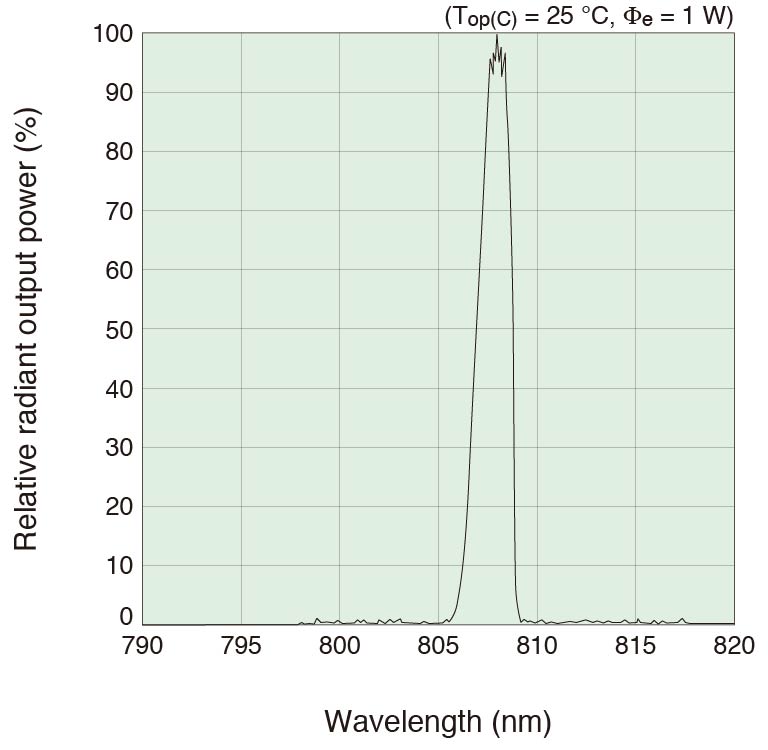

Emission spectrum (typical example)

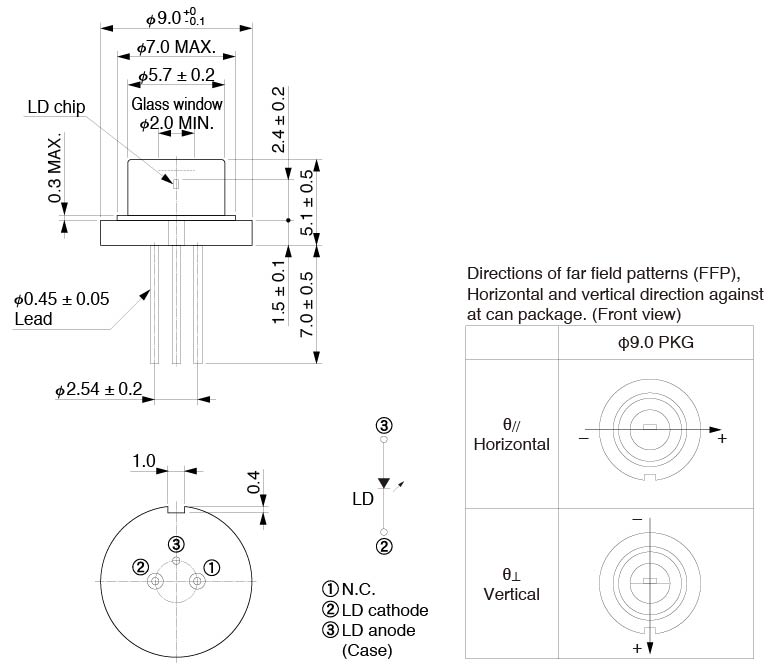

Dimensional outline (unit: mm)
