Wavelength Swept Pulsed Quantum Cascade Laser

L14890-09

It is a pulse quantum cascade laser capable of broad wavelength sweeping and has an external cavity configuration.
It can carry out the measurement of mid-infrared spectrum remotely, contactless and with high throughput.
This product offers new value to the mid-infrared spectroscopy, which was traditionally carried out with FT-IR, by utilizing features of laser; high output and high wavelength resolution.


Features
- Installed MEMS grating
- Realize high speed and broad wavelength sweeping
- Built-in collimation lens
- Broadband QCL based on DAU structure

Wavenumber sweep frequency typ. 1.8 kHz
Pulsed output power typ. 600 mW
Optical pulse width typ. 100 ns
Optical pulse repetition frequency typ. 180 kHz
Center wavenumber typ. 1075 cm-1
Wavenumber sweep width min. 180 cm-1
Dimensions (W × D × H) 82 × 88 × 112 mm
Weight 1.2 kg

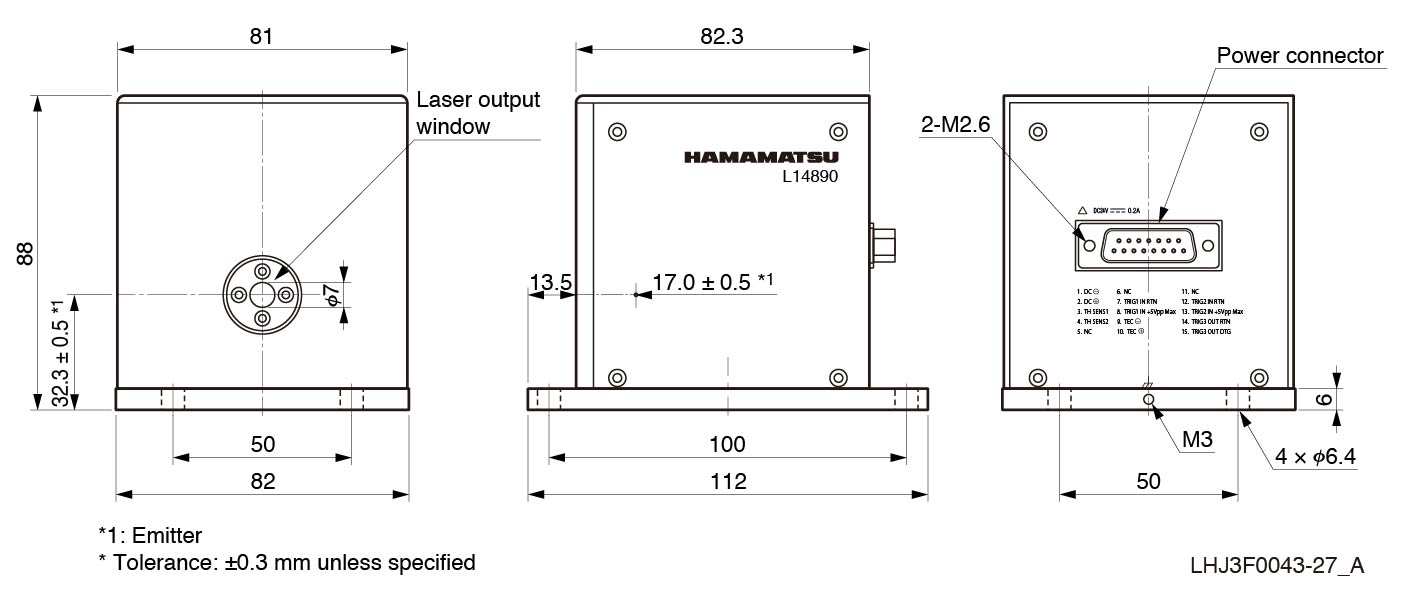

Dimensional outline (unit: mm)
