PDE-GEN3 Near infrared fluorescence imager
C13999-40
The PDE-GEN3 is the third generation Hamamatsu Near infrared fluorescence imaging system designed to observe ICG fluorescence.
Simple and compact product design with convenient functions to meet various needs in the medical field.
This is a medical device cleared in USA.
Intended Use
The PDE-GEN3 is an imaging system used in capturing and viewing fluorescent images for the visual assessment of blood flow, as an adjunctive method for the evaluation of tissue perfusion, and related tissue-transfer circulation in tissue and free flaps used during plastic, micro-, reconstructive, and organ transplant surgeries.
Features

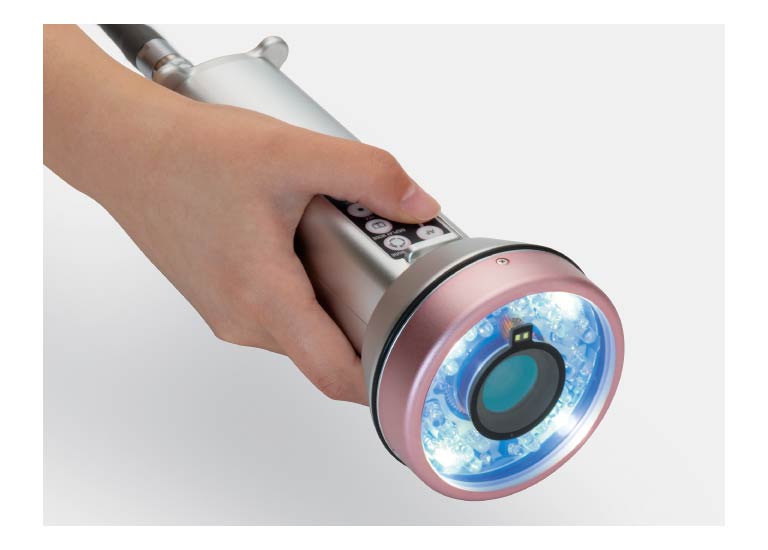

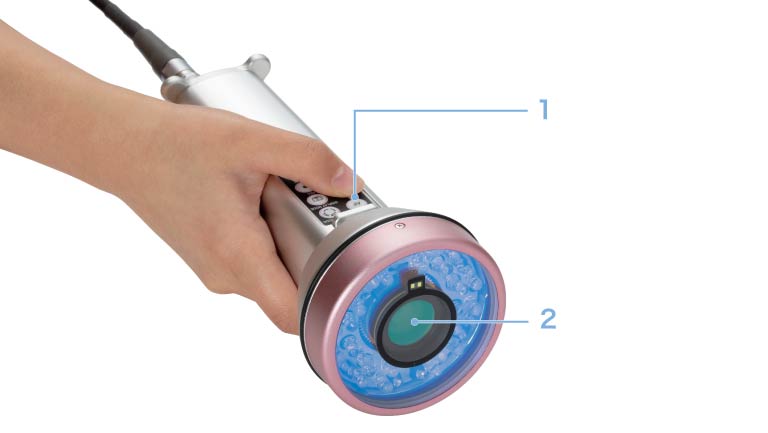

Lightweight, compact design camera unit
Easy-to-use, handheld unit allows you to shoot close to the area of interest on the surgical field.
1. One shot auto focus
Auto Focus with TOF (Time-Of-Flight) distance sensor enables a user to focus to the right spot quickly and easily without any manual handling. This is especially helpful in a surgical setting where it is difficult to focus on the subject.
2. Two CMOS sensors heighten visualization

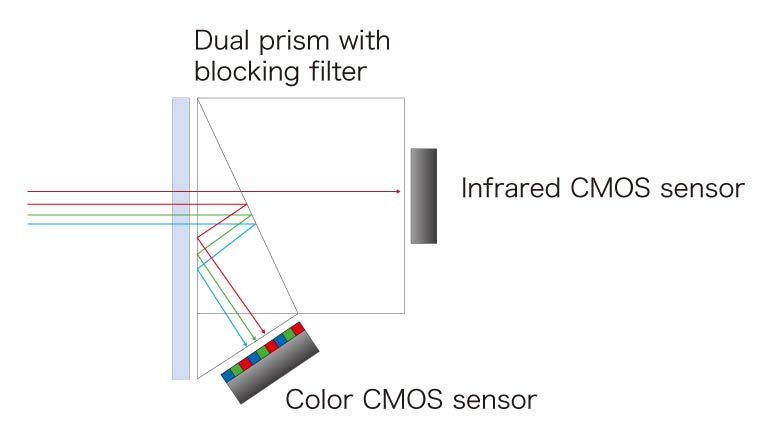

Light from the lenses of the camera is split by a prism and travels to two CMOS sensor chips, one for color images, and one specially tuned for near-infrared (NIR) wavelengths. This allows the entire area of each sensor chip to be fully utilized and enables users to make observations in fluorescence mode and color mode simultaneously without losing detection sensitivity.
Improved detection sensitivity and Full HD output delivers a clear and crisp wide-screen image to a larger monitor.

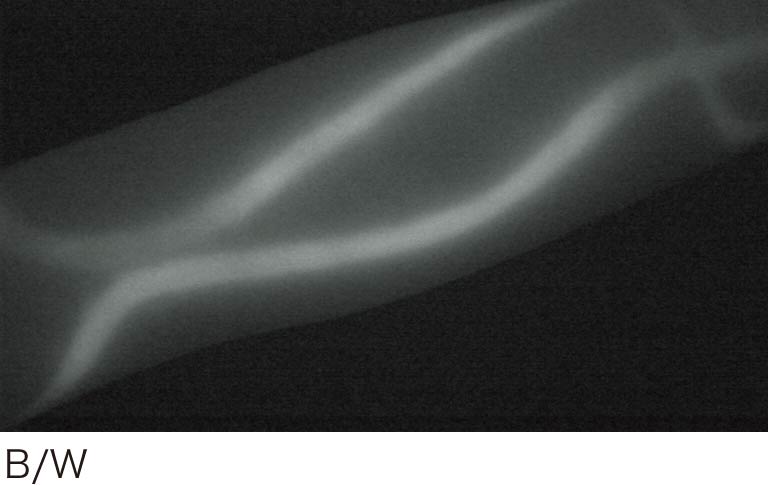

Four image modes and multi-view monitoring

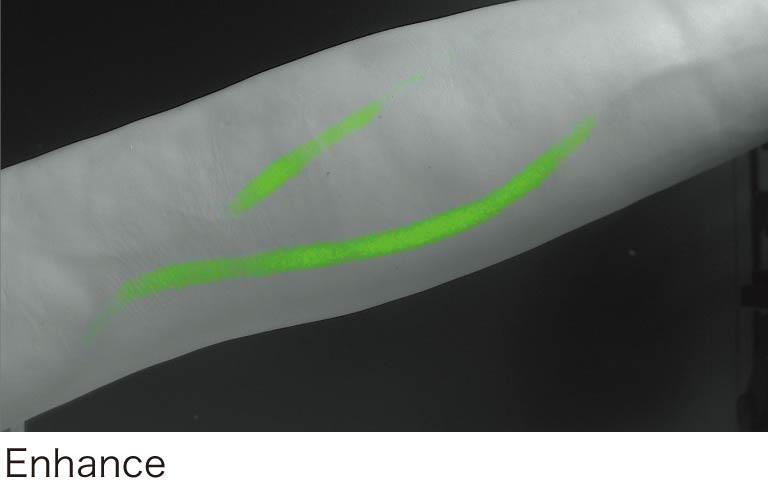

Two CMOS sensors simultaneously capture visible and fluorescent images in the same field of view, enabling an immediate switch to Enhance / Overlay mode, in which pseudo-color ICG fluorescence is superimposed on monochrome or color images.
* A dummy arm is used in these images.

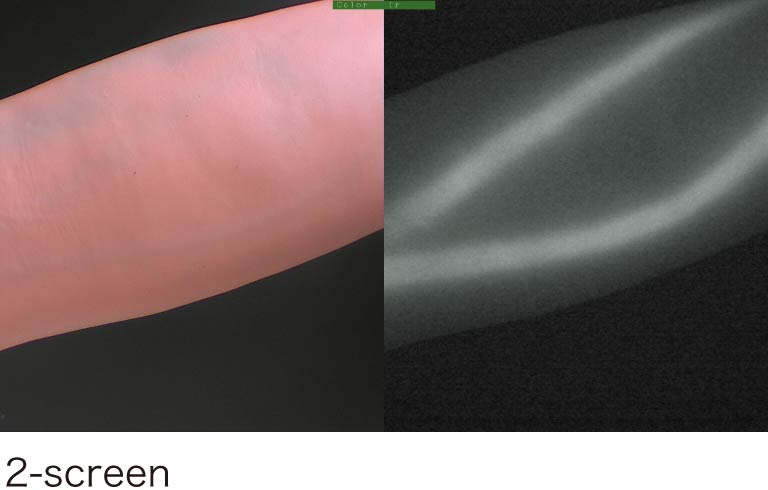

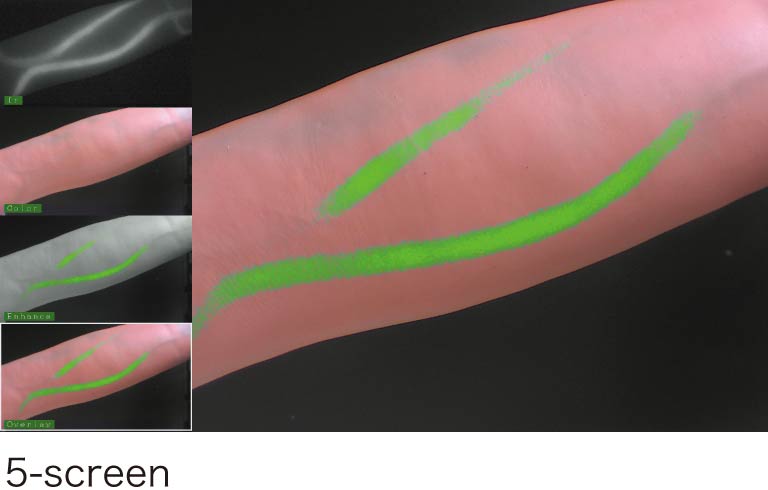

It is possible to view the four image modes in either a 2-screen or 5 -screen picture-in-picture display. This allows users to make comparison to the various image modes in real time and use traditional black-and-white fluorescence clinically while showing color images to patients or in presentations.

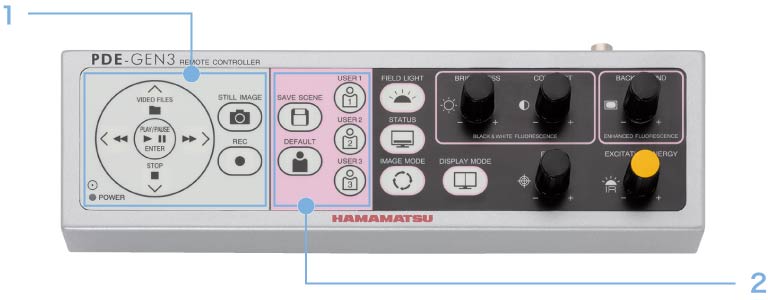

1. Video and still image
Videos and still images can be saved in a USB memory stick.
They can also be played and displayed.
2. User setting
Profile settings for contrast, excitation light intensity, etc. can be saved and recalled easily depending on procedure and surgeon’s preference.

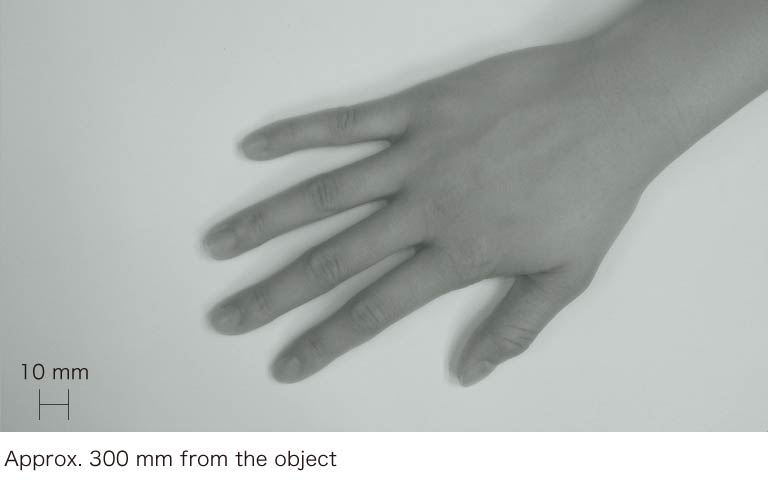

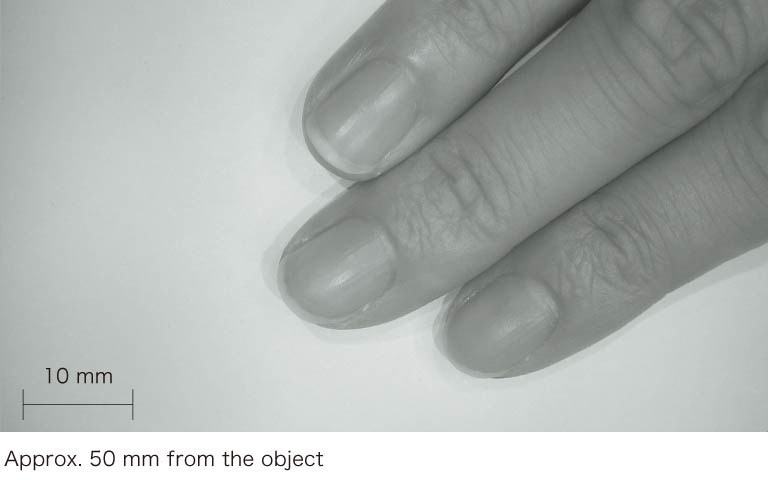

Near and far observation from 50 mm to 300 mm
The camera unit can be placed as close as 50 mm from the affected area, allowing for detailed observation of the affected area. It can be placed as far as 300 mm for a broad field of view when required. Automatic focus makes switching between broad and close field of a view simple and easy.
White LED
The white LED light feature illuminates the surgical field without compromising the fluorescent image. This is particularly helpful when surgical lights have been turned off to prevent interference with the fluorescent image.
Specifications
| Product number | C13999-40 |
|---|---|
| Output signal (Digital) | 1080 / 50 p, 1080 / 60 p |
| Video output | DVI-D |
| Power supply | AC 100 V to AC 240 V, 50 Hz / 60 Hz |
| Power consumption | Max. 60 VA |
| Ambient operating temperature | +10 ˚C to +30 ˚C |
| Ambient operating humidity | 20 % to 70 % (with no condensation) |
| Ambient storage temperature | -10 ˚C to +50 ˚C |
| Ambient storage humidity | 20 % to 90 % (with no condensation) |
Dimensions (Not including projections) Weight (Not including cables and accessories) |
Main unit: 325 mm (W) × 55 mm (H) × 285 mm (D), Approx. 2.7 kg Camera unit: 80 mm (W) × 80 mm (H) × 200 mm (D), Approx. 0.55 kg Remote controller: 260 mm (W) × 25 mm (H) × 75 mm (D), Approx. 0.55 kg |
