Lateral flow reader engine THETA®
C16171-51
The C16171 series ICR engine consists of an optical head for detecting reagent color development and fluorescence lines and a contlol board integrated with a motor for driving the optical head. C16171-51 is a fluorescence lines (FITC) measurement model that uses a fluorescence method.
This ICR engine detects lines with high sensitivity by utilizing software programs for profile data acquisition and waveform analysis. When developing a lateral flow reader, this ICR engine will serve as the core component specially optimized for reading of lines.
Product overview
| Item | Description / Value | Unit |
|---|---|---|
| Target label | FITC | - |
| Measurement target*1 | Fluorescent labels | - |
| Measurement method | Fluorescence method | - |
| Light source | Blue LED | - |
*1:Two colors cannot be measured simultaneously.
Specifications
| Item | C16171-51 | Unit | ||
|---|---|---|---|---|
| Supply voltage | Min. | +3.0 | V | |
| Typ. | +3.3 / +5.0 | V | ||
| Max. | +5.5 | V | ||
| Supply current | At power-down | Typ. | 0 | A |
| In standby | Typ. | 0.05 | A | |
| In operation | Max. | 1 | A | |
| Control input voltage | R x D | Max. | +5.5 | V |
| PWRDWN | Max. | +5.5 | V | |
| Control output voltage | T x D | Max. | +5.5 | V |
| Operating ambient temperature | +15 to +30 | ℃ | ||
| Operating ambient relative humidity*2 | Below 80 | % RH | ||
| Storage temperature | -20 to +50 | ℃ | ||
| Storage ambient relative humidity*2 | Below 80 | % RH | ||
*2:No condensation

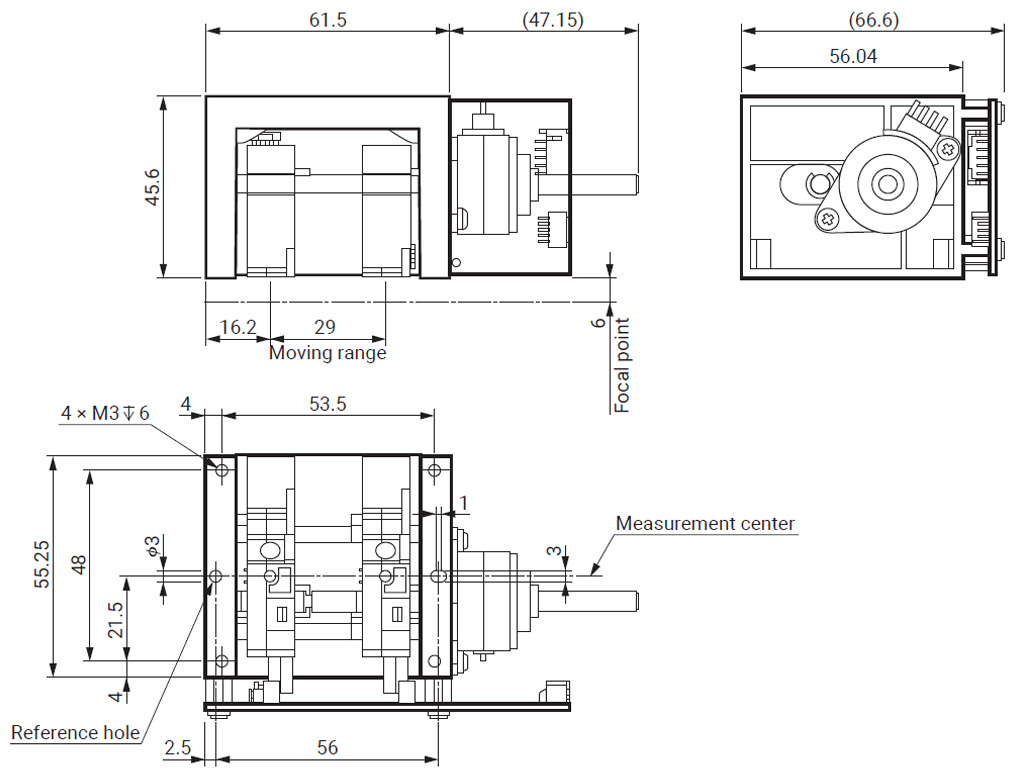

Dimentional outlines (Unit:mm)
