Lateral flow reader
C16723-51
The C16723 series are an immunochromatoreaders for reagent development and quality control. C16723-51 is a fluorescence lines (FITC) measurement model that uses a fluorescence method.
This unit is not a medical device. Do not use it for medical diagnosis and treatment.
Specifications
MAIN UNIT
| Item | C16723-51 | Unit | |
|---|---|---|---|
| Target label | FITC | - | |
| Features | Fluorescence method | - | |
| Power requirements | Max. | 5 | V |
| Interface | USB2.0 | - | |
| Light source | Blue LED | - | |
| Detector | Silicon photodiode | - | |
| Dimensions（WxHxD）*1 | 100 x 100 x 225 | - | |
*1:Not including protruding parts.
Software (for PC operation)
| Item | C16723-51 | Unit |
|---|---|---|
| Supported OS | Windows 10 (32 bit/64 bit), Windows 11 | - |
| Measurement program | Lot measurement, time-course measurement (30 / 60 second intervals) | - |
| Analysis program | Calibration curve function, concentration conversion | - |
Ratings
| Item | C16723-51 | Unit | |
|---|---|---|---|
| Number of measurement lines | Max. | 6 | lines |
| Measurement line spacing (center-to-center spacing) | Min. | 3 | mm |
| Measurement line width | 0.8 to 1.2 | mm | |
| Measurable range | Max. | 3 x 20 | mm |
| Fluorescence intensity resolution | 12 | bit | |
Measurement reproducibility *2 |
Max. | 3 % CV (at 25 ℃) | - |
| Operating ambient temperature | +15 to +30 | ℃ | |
| Operating ambient humidity *3 | Bellow 80 | ％RH | |
| Storage temperature | -20 to +50 | ℃ | |
| Storage humidity *3 | Bellow 80 | ％RH | |
*2: When measured using our standard sample.
*3: No condensation
Compatible reagent sizes (maximum)
| Item | C16723-51 | Unit |
|---|---|---|
| Reagent housing（W x H x D） | 39.5ｘ8.0ｘ120.4 | mm |
| Dip type reagent strip (W x D) | 10 x 120 | mm |

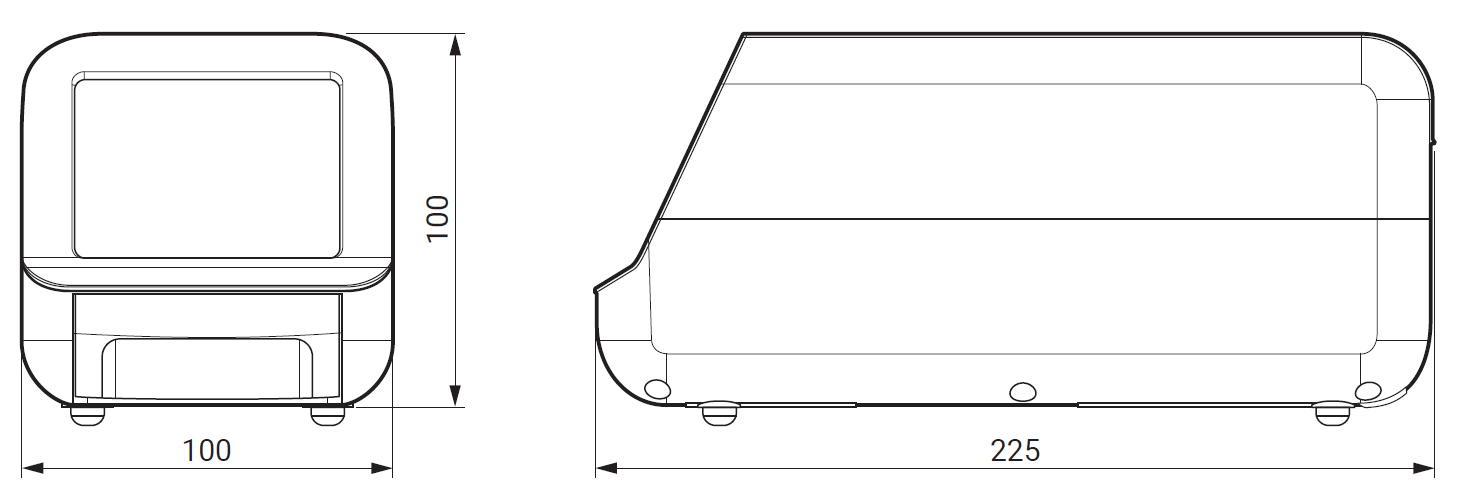

Dimensional outline (Unit mm)
Accessories

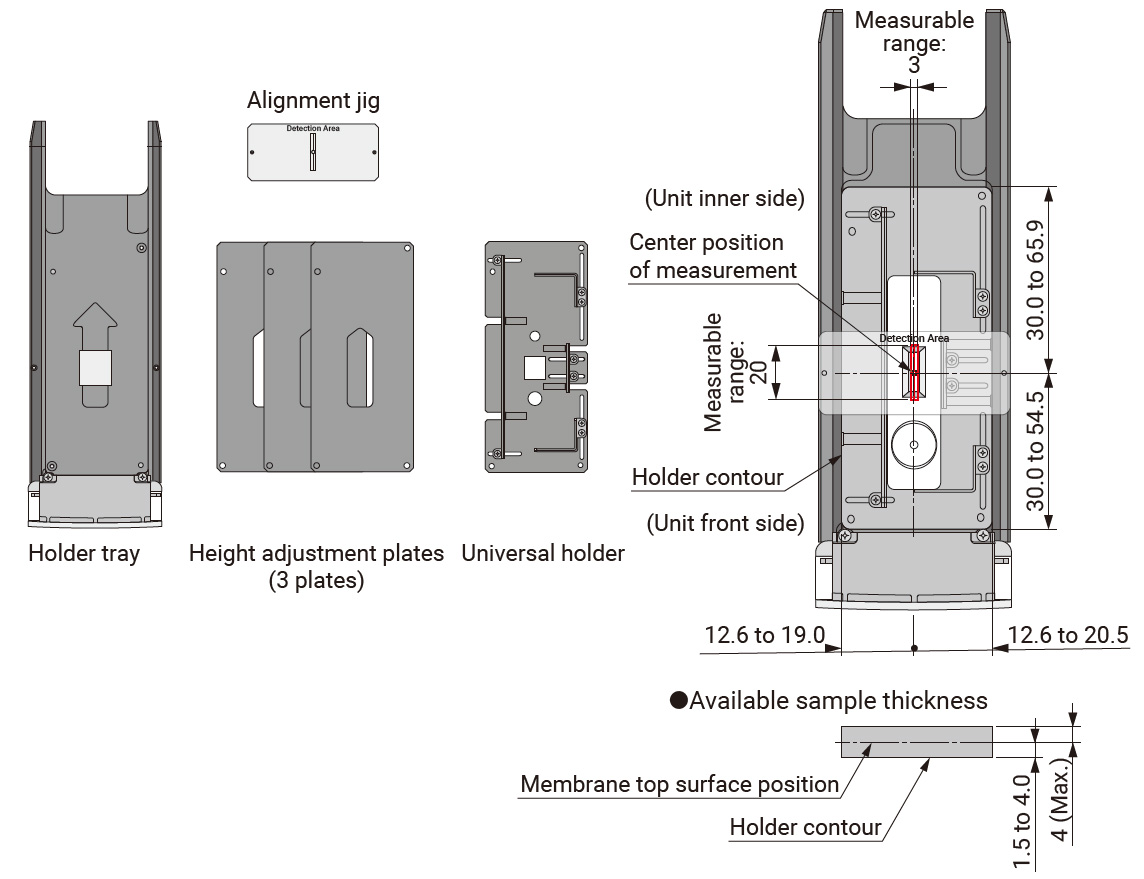

- Flexible tray
- Dedicated AC adapter A14857（Cable length：AC side 1800 mm, DC side 1220 mm）
- USB cable
- CD-ROM（containss software and user manual）
- Color sample for checking main unit A10792
Sold separately
- Custom holders
- Dip type holder A10793-01

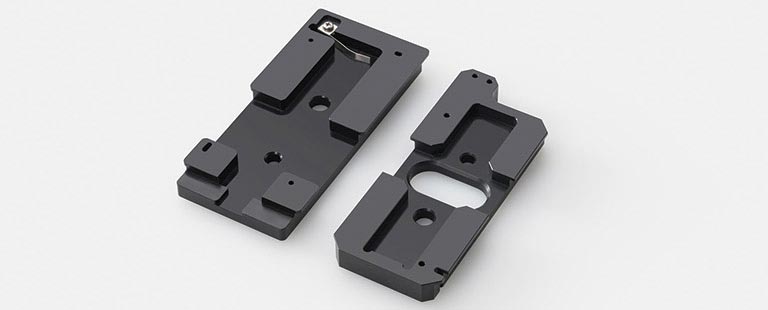

Production example
We design and fabricate custom holders that will perfectly match your reagent housing. If our standard flexible tray does not support the size of the reagent housing you are using, our custom-designed holders may prove an ideal solution. So please contact us and provide the reagent housing dimensions.
