MAICO® MEMS confocal unit
C17290 series
Making confocal imaging more accessible
This unit is classified as a Class 3B laser product (IEC 60825-1, EN 60825-1). It is intended for use only by integrators or resellers who are capable of implementing their own interlock circuit systems.
MAICO is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
Features
- Confocal fluorescence unit installed in your own microscope
- High-sensitivity detectors
- High-speed scanning with MEMS mirror
- Conventional confocal optics
- Enable simultaneous multiband confocal acquisition without bleed-through (patent pending)
Specifications
| Type number | C17290 series (C17290-1111, C17290-1110) |
|---|---|
| Maximum effective field of view | 8.0 mm × 6.0 mm |
| Maximum number of pixels | 1280（H）× 960（V） |
| Image size | 1280（H）× 960（V） 1280（H）× 480（V） 1280（H）× 240（V） |
| Frame rate (Typ.) | 19 frames/s (960 scanning lines) 38 frames/s (480 scanning lines) 76 frames/s (240 scanning lines) |
| Zoom function | 1×, 2× |
| Excitation laser *1 | C17290-1111: 405 nm, 488 nm, 561 nm, 638 nm C17290-1110: 405 nm, 488 nm, 561 nm |
| Laser class | Class 3B |
| Detection wavelength | 425 nm to 465 nm (at 405 nm excitation) 510 nm to 540 nm (at 488 nm excitation) 580 nm to 619 nm (at 561 nm excitation) 660 nm to 730 nm (at 638 nm excitation) |
| Detector *2 | PMT(405 nm), high sensitivity GaAsP PMT(488 nm, 561 nm, 638 nm) |
| Digital output | 12 bit |
| Image acquisition mode | Single channel measurement, multiple channel sequential measurement (frame by frame), multiple channel simultaneous measurement (up to 4 channels) |
| Pinhole *3 | 3 manual selections (large/medium/small) for each wavelength |
| Compatible objective lens *4 | Magnification 20× to 100× |
| Interface | USB 3.0 |
| Output trigger connector | SMA |
| Lens mount | C-mount |
| Power consumption | 90 VA |
| Ambient operating temperature | +18 ℃ to +28 ℃ |
| Ambient operating humidity | 30 ％ to 80 ％ (with no condensation) |
| Ambient storage temperature | -10 ℃ to +50 ℃ |
| Ambient storage humidity | 85 ％ (with no condensation) |
*1: The C17290-1111 is provided with 4 wavelengths of 405 nm, 488 nm, 561 nm, and 638 nm. The C17290-1110 is provided with 3 wavelengths of 405 nm, 488 nm, and 561 nm. It supports up to 4 wavelengths by adding A17291-638.
*2: Equipped with the same number of lasers.
*3: The pinhole size can be read out as accessory information at the time of measurement.
*4: We recommend use of an objective lens with an image-side NA (objective lens NA/magnification) smaller than 0.0375.

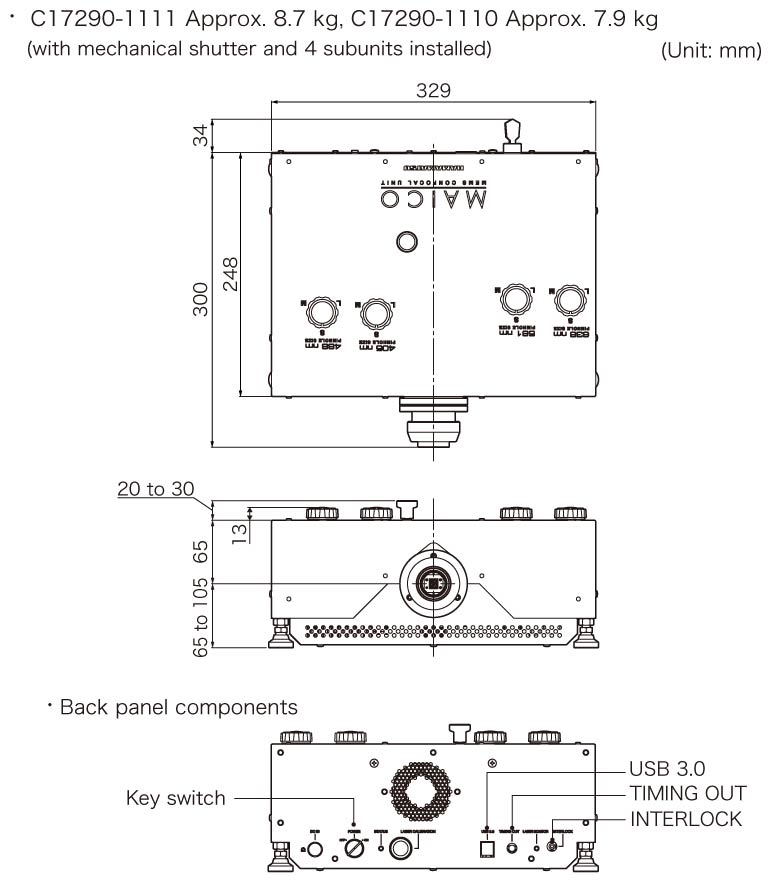

Dimensions
