Mercury-xenon lamp

L2421

50 W, Spectral distribution : 185 nm to 2000 nm

Hg - LAMP CONTAINS MERCURY, manage in accord with disposal laws, see www.lamprecycle.org or call 1-866-636-4579.

Specifications

Product Name Mercury-xenon Lamp
Lamp Rating 50 W
Arc Length 1 mm
Lamp Current 3.5 A +/-0.5 A
Lamp Voltage 14 V
Window Material Fused Silica
Spectral Distribution (Short) 185 nm
Spectral Distribution (Long) 2000 nm
Light Output Stability Drift Typ. +/-0.5 %/h
Light Output Stability Fluctuation (p-p) Max. 2 %
Guaranteed Operation Life 500 h
Average Life 1000 h
Orientation Vertical +/-15 degree or Horizontal +/-15 degree
Cooling Method Convection Cooling
Supply Voltage Min. 50 V dc
Trigger Voltage 15 kV
Weight 10 g

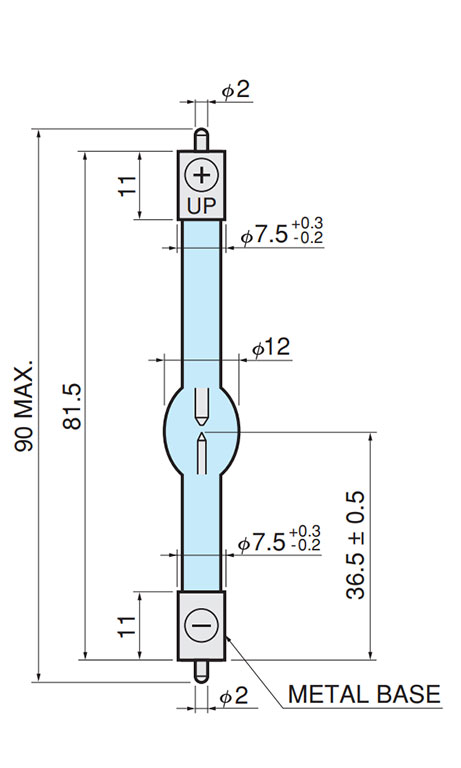

Dimensional outline (Unit: mm)
