The L10596 is infrared LED with a microball lens cemented to the current confinement chip surface. This combination ensures narrow directivity and uniform emission. As a variant type not using a microball lens, the L10596-03 is also available with the LED chip potted with resin, which gives a small emission spot of φ160 μm. The L10569-03 has a light-re ecting layer inserted between the emission section and the GaAs substrate, which increases the light output by 1.3 times that of conventional products.
|Package Category||Resin potted

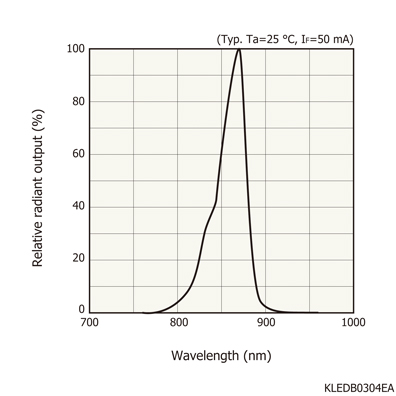

|Peak emission wavelength (min.)||850 nm|
|Peak emission wavelength (typ.)||870 nm|
|Peak emission wavelength (max.)||890 nm|
|Spectral half-width (typ.)||35 nm|
|Radiant flux (typ.)||6.5 mW|
|Forward voltage (typ.)||1.6 V|
|Cutoff frequency (typ.)||15 MHz|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
