High output power red emitting diode


The L11767-0066L is a high output red LED that delivers light output more than twice that of our previous products. Electric power required to provide the same brightness as the previous products is reduced by as much as 70%. The L11767-0066L also offers high reliability since it is a 4-element (AlGaInP) LED.

-High radiant output power (more than twice compared to previous products) 7 mW typ. (IF=20 mA)
-High reliability


Package Metal
Package Category With lens
Peak emission wavelength (min.) 650 nm
Peak emission wavelength (typ.) 660 nm
Peak emission wavelength (max.) 670 nm
Spectral half-width (typ.) 18 nm
Radiant flux (typ.) 7 mW
Forward voltage (typ.) 2.1 V
Cutoff frequency (typ.) 6 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

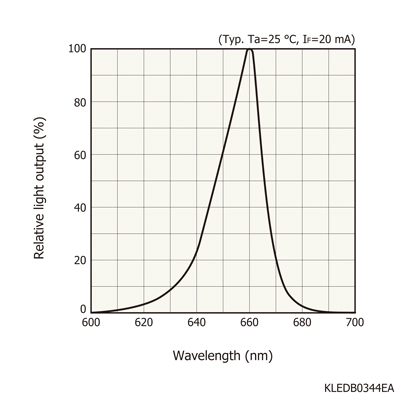

Emission Spectrum

Dimensional outline (unit: mm)
