Infrared LED


For optical switches


The L9338 is an infrared LED developed for optical switches and is available at a low cost.

-High reliability
-Low price


Package Metal
Package Category Resin potted
(with reflector)
Peak emission wavelength (min.) 920 nm
Peak emission wavelength (typ.) 945 nm
Peak emission wavelength (max.) 970 nm
Spectral half-width (typ.) 60 nm
Radiant flux (typ.) 15 mW
Forward voltage (typ.) 1.34 V
Cutoff frequency (typ.) 0.3 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

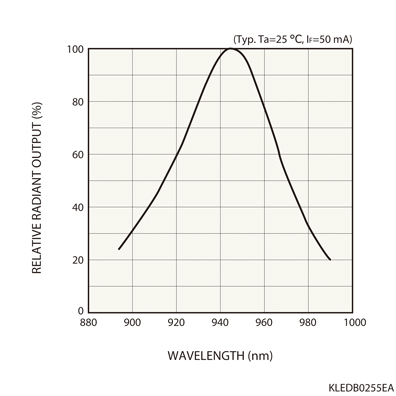

Emission Spectrum

Dimensional outline (unit: mm)
