Microfocus X-ray source

L14351-02

Tube voltage : 40 kV to 180 kV, Maximum output : 90 W, X-ray focal spot size: 20 um to 200 um, FOD : 19.8 mm, X-ray beam angle : 62 degree, Serial port control : RS-232C



X-ray source for non-destructive inspection of electrical devices, mount boards, automotive parts, etc.

Features

  • High output: 90 W Max.
  • No high voltage cable connection required
  • External control via RS-232C interface

Applications

  • Dimension measurement
  • Failure analysis
  • Quality management
  • Automatic inspection

[Applicable objects]

  • Metal component
  • Battery
  • Printed circuit board
  • Electronic component
  • Plastic component

Specifications

Tube Voltage 180 kV
Type Sealed type
Tube Voltage Operational Range 40 kV to 180 kV
Maximum Output 90 W
X-ray Focal Spot Size 20 μm to 200 μm
X-ray Beam Angle (Coned) 62 degree
Focus to Object Distance (FOD) 19.8 mm

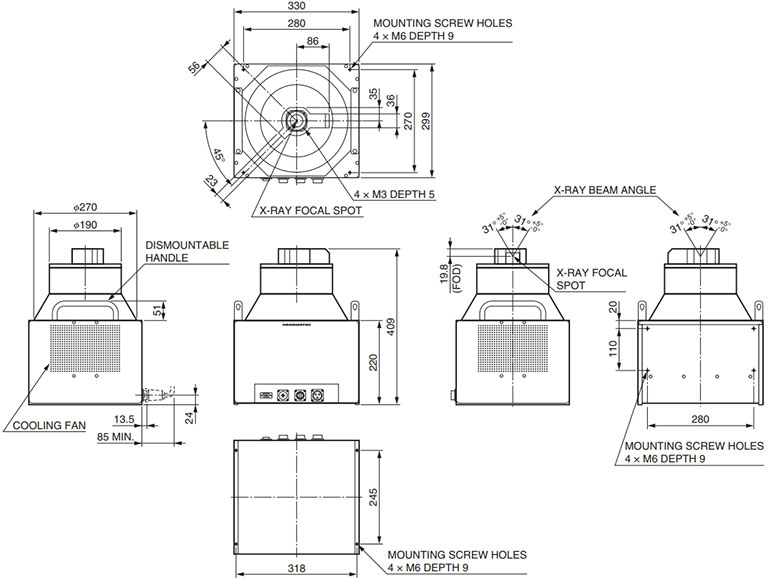

Dimensional outlines (Unit mm)
