Features

  • Minimum detectable pinhole size : 10 μm
  • Maximum detection speed : 2400 pieces/min

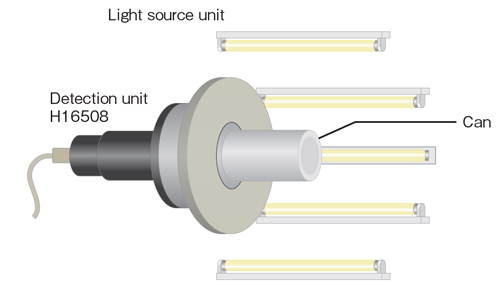

Detection principle

Specifications

Parameter Description / Value Unit
Input voltage (DC) 24 V
Maximum current consumption 0.1 A
Detection unit Detector Photomultiplier tube
Photosensitive area size Φ54 mm
Wavelength range 450 to 480 nm
Operating temperature range +10 to +45 °C
Storage temperature range -20 to +50 °C
Operating / storage humidity range 35 to 85 (no condensation) %RH
Applicable standard IEC 61326-1 Group1 Class A

* Detectable pinhole size depends on can shapeard irradiation light level.
* Accessories: Flange ring, I/O cable, PH300 cable, SCL cable

Dimensional outlines (Unit mm)

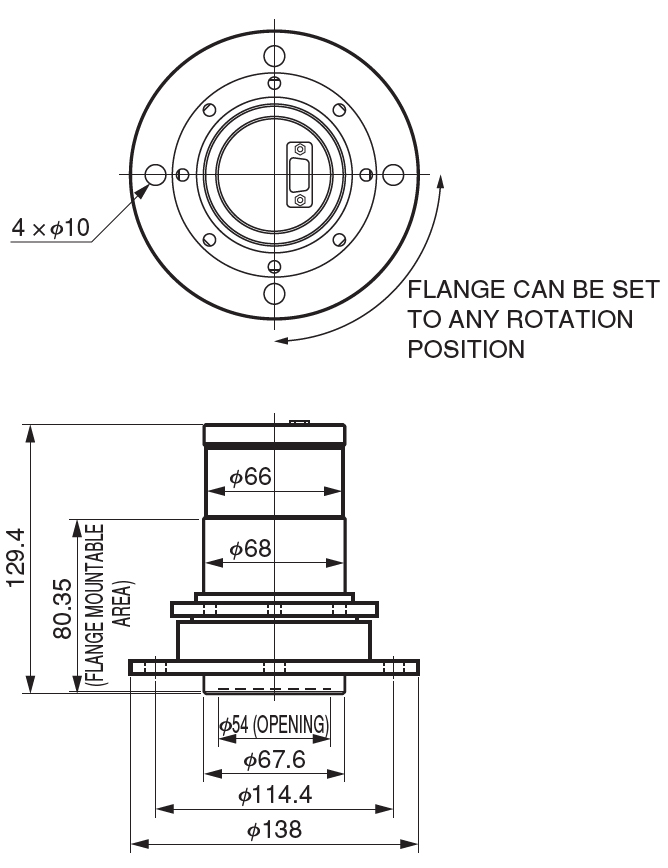

Detection unit H16508

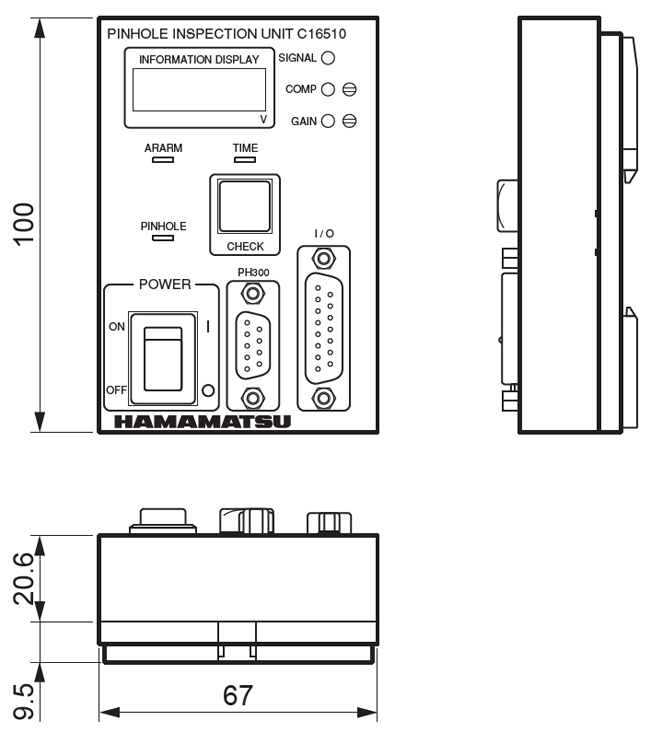

Control unit C16509
