InGaAs APD

G8931-04

High-speed response InGaAs APD



The G8931 series are InGaAs APDs used for distance measurement, optical communication, and low-light-level detection.
The G8931-04 provides high-speed response at 2.5 Gbps, which is necessary for SONET, G/GE-PON, and other optical trunk lines.



Features
- High-speed response: 2.5 Gbps
- Low dark current
- Low capacitance
- High sensitivity

Photosensitive area φ0.04 mm
Package Metal
Package Category TO-18
Spectral response range 950 nm to 1700 nm
Peak sensitivity wavelength (typ.) 1550 nm
Photosensitivity (typ.) 0.9 A/W
Dark current (max.) 65 nA
Cutoff frequency (typ.) 4000 MHz
Terminal capacitance (typ.) 0.35 pF
Breakdown voltage (typ.) 55 V
Temperature coefficient of breakdown voltage (typ.) 0.11 V/℃
Measurement condition Ta=25℃, Photosensitivity: λ=1550 nm, M=1

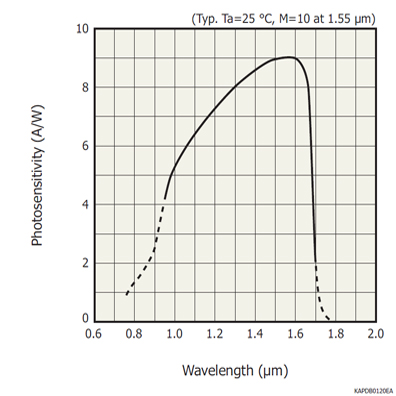

Spectral response

Dimensional outline (unit: mm)
