Distance area image sensor
S16443-01WT
NIR-enhanced type
measures the distance to an object by TOF (Time-Of-Flight) method
The distance image sensor is designed to measure the distance to an object by TOF method. When used in combination with a pulse modulated light source, this sensor outputs phase difference information on the timing that the light is emitted and received. Distance data can be obtained by performing calculation on the output signal with an external signal processing circuit or on a PC. We provide an evaluation kit for this product. Contact us for detailed information.
Features
-High sensitivity in the near infrared region
-Improved torelance to background light
-Number of effective pixels: 128(H) × 8(V)
-Compact chip size package (CSP) type
| Type | NIR-enhanced type |
|---|---|
| Image size | 2.56 x 1.612 mm |
| Number of effective pixels | 128 x 8 |
| Pixel pitch | 20 (H), 201.5 (V) μm |
| Pixel height | 20 μm |
| Spectral response | 500 to 1100 nm |
| Peak sensitivity wavelength | 800 nm |
| Video data rate | 10 MHz |
| Note | Typ., Ta=25 ℃, Vdd(A)=Vdd(D)=3.3 V, unless otherwise noted |
Spectral response
Dimensional outline (unit: mm)

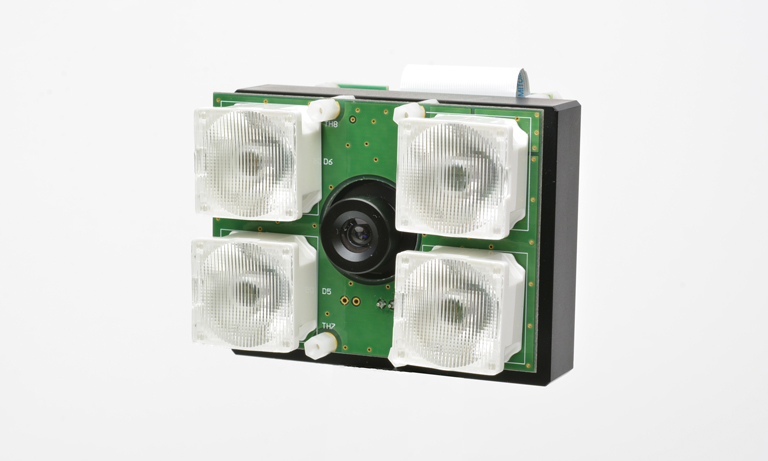

Evaluation kit for distance area image sensor C16445
An evaluation kit [70 mm (H) × 55 mm (V)] is available for the S16443-01WT distance area image sensor (with the S16443-01WT).
Related documents
Related products
