Microchannel plate assembly
F12395-11
/e_f12395-11_do_xx,0.jpg.thumb.252.252.jpg)
MCPs are made of millions to tens of millions of conductive glass capillaries bundled together to form a thin plate.
F12395-11 is a compact microchannel plate (MCP) assembly featuring a low-profile design and an effective diameter of Φ27 mm, making it suitable for integration into space-constrained environments.
Specifications
| Items | F12395-11 | Unit | |
|---|---|---|---|
| Number of MCPs | 2 | ー | |
| Effective area | Φ27 | mm | |
| Signal readout | Single anode | ー | |
| Channel diameter | 12 | µm | |
| Pulse width (FWHM) *1 | 1500 | ps | |
| Gain *2 | Min. | 1 × 106 | ー |
| Dark count *2 | Max. | 3 | S-1・cm2 |
| MCP supply voltage *3 *4 | -2.0 | kV | |
| MCP-OUT to anode supply voltage *3 | 0.1 | kV | |
*1: FWHM at output peak value 20 mV, 50 Ω input
*2: Supply voltage: 1.0 kV/MCP, vacuum: 1.3 × 10-4 Pa, operating ambient temperature: +25 °C
*3: Vacuum: 1.3 × 10-4 Pa
*4: When supplying a maximum of -2.1 kV to the HV electrode

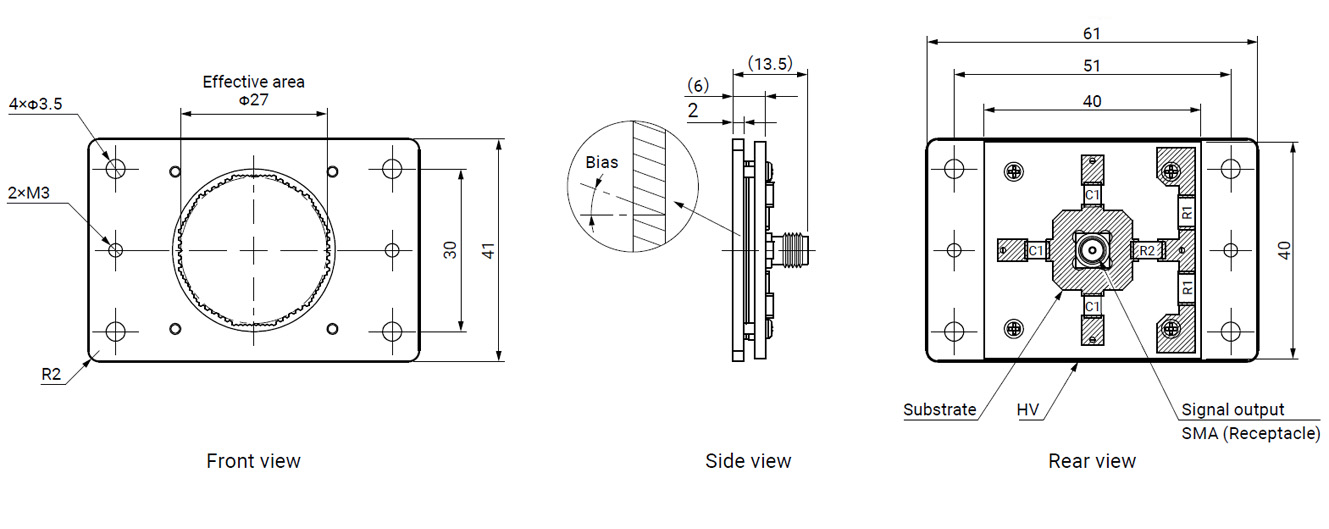

Dimensional outline (Unit:mm)
