Microchannel plate assembly

F14845-11

MCPs are made of millions to tens of millions of conductive glass capillaries bundled together to form a thin plate

F14845-11 , named MIGHTION, is a microchannel plate (MCP) assembly that integrates the advantages of a hybrid-type detector, including fast response, broad dynamic range, and extended lifetime.

Specifications

Items F14845-11 Unit
Number of MCPs 1
Effective area Φ25 mm
Signal readout Single anode
Channel diameter 12 µm
Pulse width (FWHM)) 550 ps
Gain *1 Min. 1 × 106
MCP supply voltage *2 1.0 kV
MCP-OUT to anode supply voltage *2 6.0 kV

*1: Supply voltage: 1.0 kV/MCP, vacuum: 1.3 × 10-4 Pa, operating ambient temperature: +25 °C

*2: Vacuum: 1.3 × 10-4 Pa

Operating principle

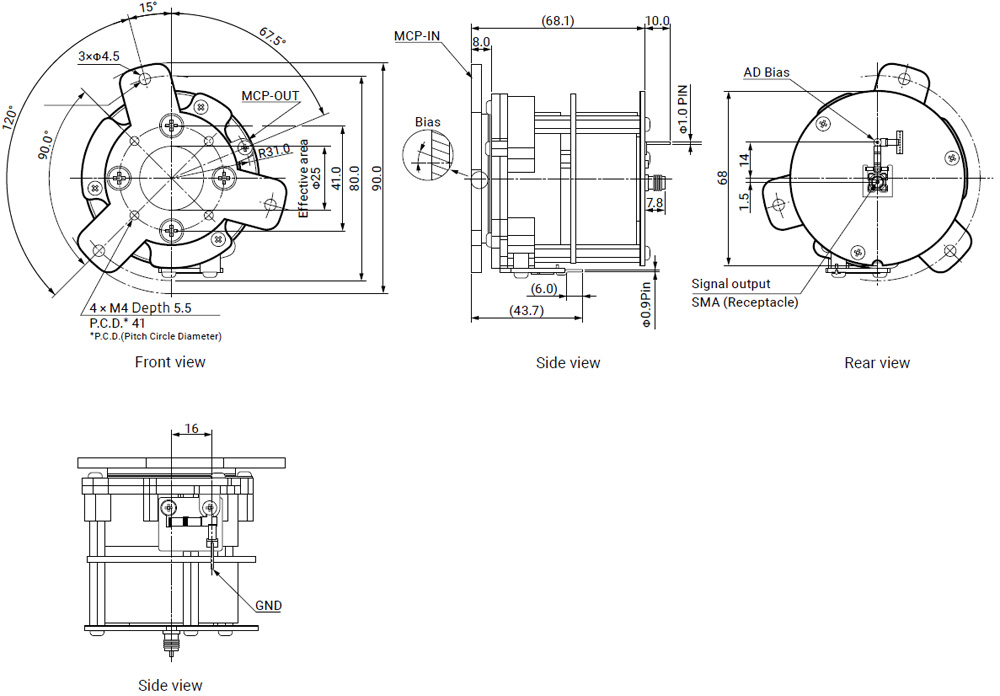

Dimensional outline (Unit:mm)
