MCP (microchannel plate)
F2226-24
/e_mcp-assemblies_pp02_xx.jpg/_jcr_content/renditions/thumb-e_mcp-assemblies_pp02_xx.jpg)
MCPs are made of millions to tens of millions of conductive glass capillaries bundled together to form a thin plate.
F2226-24 is a microchannel plate (MCP) assembly featuring a dual-MCP configuration with an effective diameter of Φ77 mm.
Specifications
| Items | F2226-24S | F2226-24P | Unit | |
|---|---|---|---|---|
| Number of MCPs | 2 | ー | ||
| Effective area | Φ77 | mm | ||
| Signal readout | Single anode | Phosphor screen | ー | |
| Channel diameter | 25 | µm | ||
| Gain*1 | Min. | 1 × 106 | ー | |
| Pulse height resolution *1 | Max. | 120 | ％ | |
| Dark count *1 | Max. | 3 | S-1・cm2 | |
| MCP supply voltage *2 | 2.0 | kV | ||
| MCP-OUT to anode supply voltage *2 | 0.5 | 3.0 to 4.0 | kV | |
*1: Supply voltage: 1.0 kV/MCP, vacuum: 1.3 × 10-4 Pa, operating ambient temperature: +25 °C
*2: Vacuum: 1.3 × 10-4 Pa

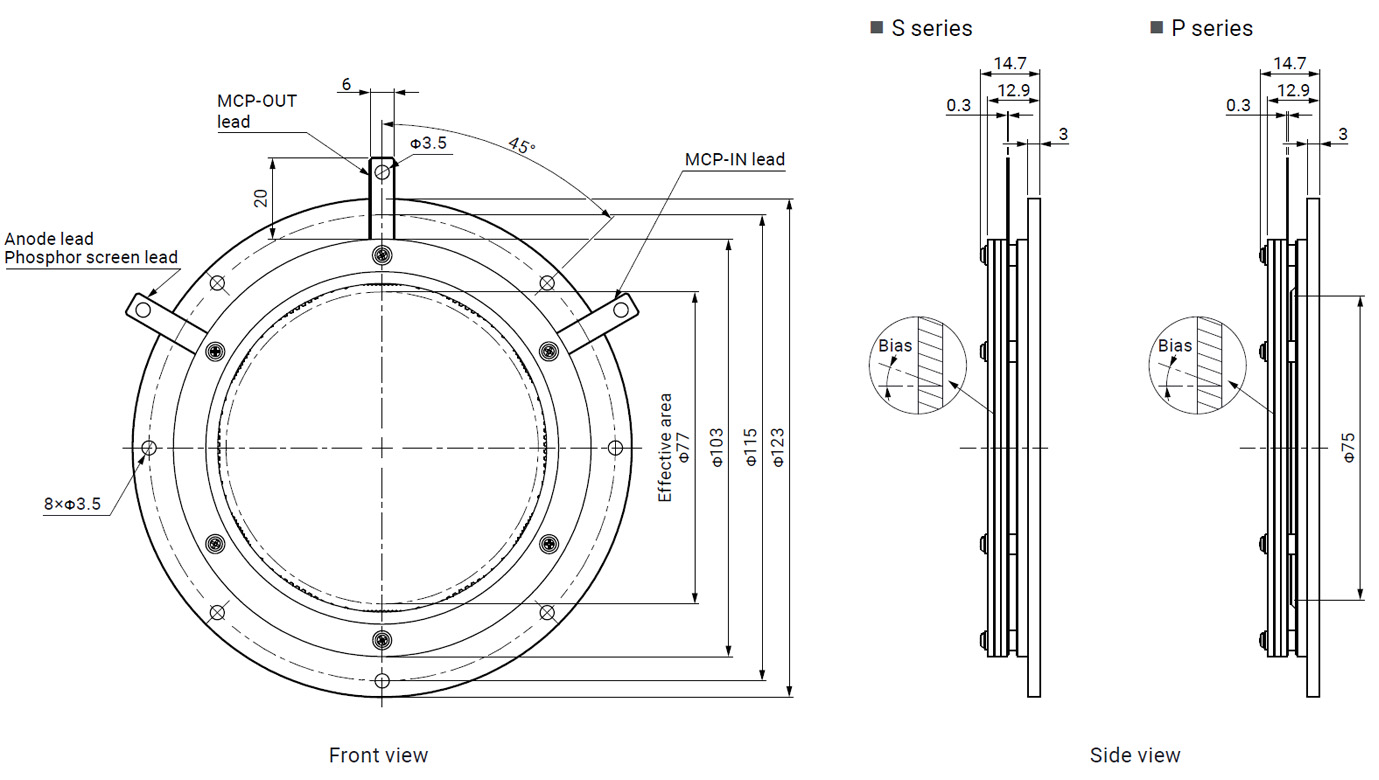

Dimensional outline (Unit:mm)
