Image intensifier unit
|Product Name||AC 100 to 240 V|
|Measurement Wavelength||UV to NIR|

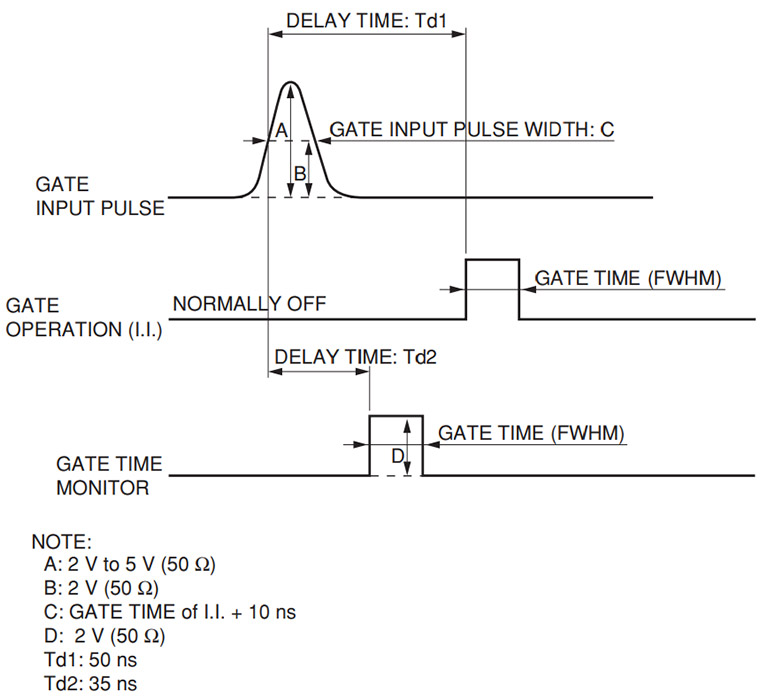

|Gate Time||5 ns|
|Gate Maximum Repetition Frequency||30 kHz|

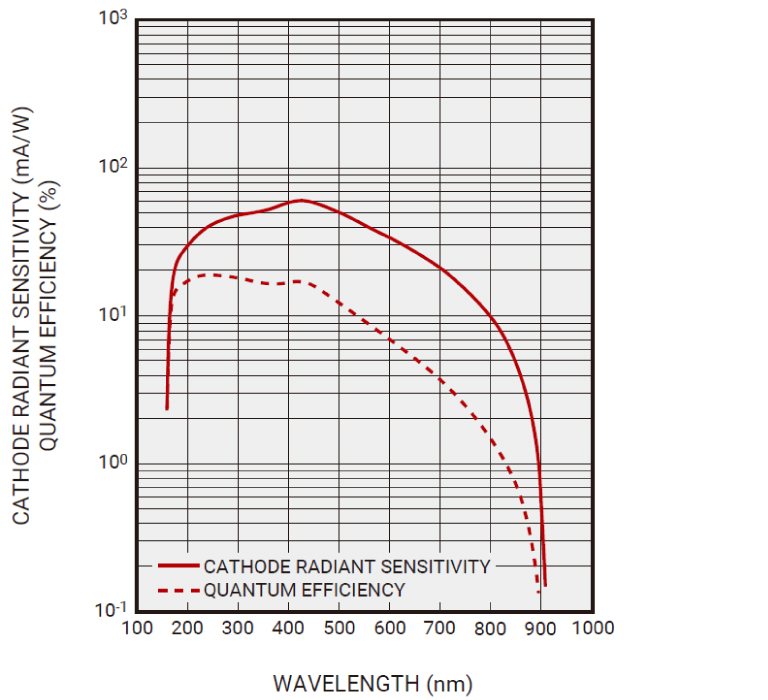

|Spectral Response (Short)||185 nm|
|Spectral Response (Long)||900 nm|
|Spectral Response (Peak)||0.15|
|[I.I. unit] Input Area||Φ25|
|[I.I. unit] Output Area||50 ns|

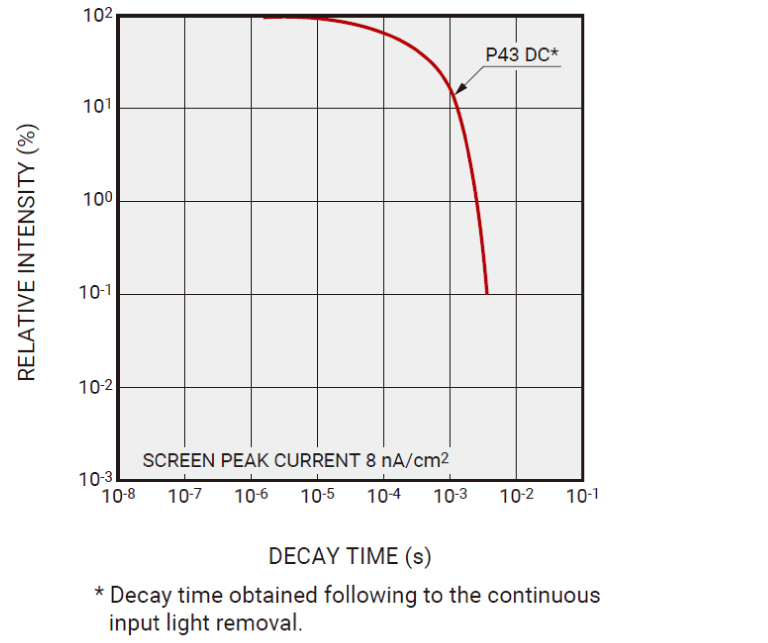

|[I.I. unit] Phosphor Screen Output Window||P43 / FOP|
|Stages of MCP||1|

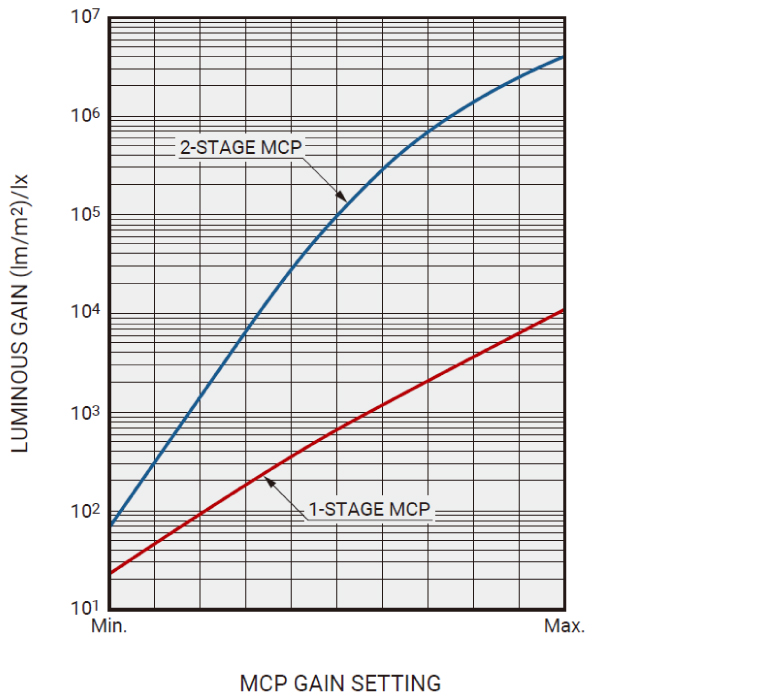

|[I.I. unit] Luminous Gain Typ.||1.1 x 104 (lm/m2)/lx|
|[I.I. unit] EBI Radiant Typ.||UV to near IR range|
|[I.I. unit] Limiting Resolution Typ.||64 Lp/mm|
|PC Control||230 μA/lm|
|Power Supply||100 V to 240 V|
|Operating Ambient Temperature||0 ℃ ～ +40 ℃|
|Operating Ambient Humidity||Below 70 %|
