InGaAs area image sensor
G13393-0808W
Near-infrared two-dimensional image sensor with 320 × 256 pixels
(Spectral response range: 0.95 μm to 1.7 μm)
The G13393-0808W has a hybrid structure consisting of a CMOS readout circuit (ROIC: readout integrated circuit) and back-illuminated InGaAs photodiodes. Each pixel is made up of an InGaAs photodiode and a ROIC electrically connected by indium bump. The timing generator in the ROIC provides an analog video output and AD-TRIG output which are obtained by just supplying digital inputs. The G13393-0808W has 320 × 256 pixels arrayed at a 20 μm pitch and their signals are read out from a video line. Light incident on the InGaAs photodiodes is converted into electrical signals which are then input to the ROIC through indium bumps. Electrical signals in the ROIC are converted into voltage signals and then sequentially output from the video line by the shift register. The G13393-0808W is hermetically sealed in a metal package together with a two-stage thermoelectric cooler to deliver stable operation.
Features
- Spectral response range: 0.95 μm to 1.7 μm
- High sensitivity: 1 uV/e-
- Frame rate: 228 frames/s max.
- Global shutter mode
- Simple operation (built-in timing generator)
- Two-stage TE-cooled
| Image size | 6.40 mm × 5.12 mm |
|---|---|
| Cooling | Two-stage TE-cooled |
| Number of effective pixels | 320 × 256 |
| Pixel size | 20 μm × 20 μm |
| Pixel pitch | 20 μm |
| Package | Metal |
| Spectral response range | 950 nm to 1700 nm |
| Peak sensitivity wavelength (typ.) | 1550 nm |
| Dark current (typ.) | 0.5 pA |
| Frame rate (max.) | 228 frames/s |
| Measurement condition | Td=15 ℃, Vdd=Port_sel=Mode01=5 V,Mode02=0 V, Vb1=0.5 V, PD_bias=3 V, Vref=3 V |

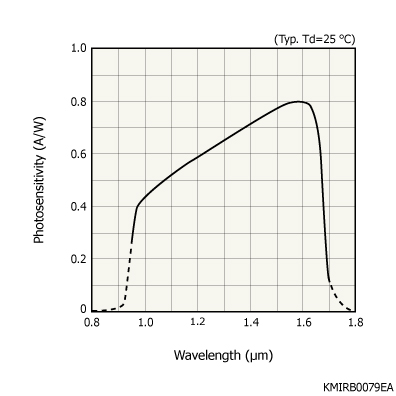

Spectral response
