InGaAs PIN photodiode
|Photosensitive area||φ0.2 mm|
|Number of elements||1|
|Package Category||Surface mount type|

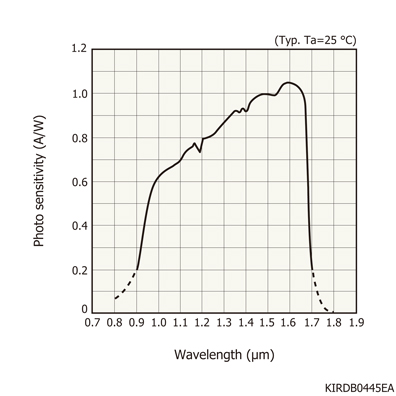

|Spectral response range||0.9 to 1.7 μm|
|Peak sensitivity wavelength (typ.)||1.55 μm|
|Photosensitivity (typ.)||1 A/W|
|Dark current (max.)||0.8 nA|
|Cutoff frequency (typ.)||1000 MHz|
|Terminal capacitance (typ.)||3 pF|
|Noise equivalent power (typ.)||3×10-15 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, -3 dB, Terminal capacitance: VR=5 V, f=1 MHz|
