InGaAs PIN photodiode
- Cutoff wavelength: 2.1 μm
- Low cost
- Photosensitive area: φ3 mm
- Low noise
- High sensitivity
- High reliability
- High-speed response
|Photosensitive area||φ3.0 mm|
|Number of elements||1|

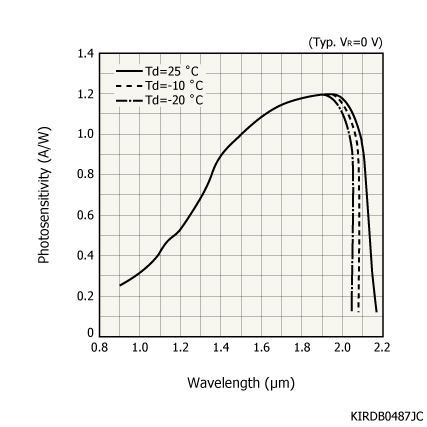

|Spectral response range||0.9 to 2.1 μm|
|Peak sensitivity wavelength (typ.)||1.95 μm|
|Photosensitivity (typ.)||1.2 A/W|
|Dark current (max.)||10000 nA|
|Cutoff frequency (typ.)||1.5 MHz|
|Terminal capacitance (typ.)||2000 pF|
|Noise equivalent power (typ.)||8.5×10-13 W/Hz1/2|
|Measurement condition||Typ. Tc=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=0.5 V, Cutoff frequency: VR=0 V, RL=50 Ω, Terminal capacitance: VR=0 V, f=1 MHz|
