MPPC module

C13369-3050EA-04

MPPC array module for very-low-level light detection, 16 ch analog output



The C13369-3050EA-04 is an optical measurement module with an MPPC array that can detect very-low-level light (analog output type). The module consists of a 16 ch MPPC array, an amplifier, and a high-voltage power supply circuit. It has a photosensitive area of 3 × 3 mm. The signal output type of these MPPC module is 16 ch analog. You can simply connect an external power supply (±5 V) to use this module.


Features
- Built-in MPPC array (4 × 4 ch)
- High sensitivity in the short wavelength range
- Low noise equivalent power
- Built-in temperature compensation function
-Compact and lightweight
- Analog output



Built-in sensor S13361-3050NE-04
Cooling Non-cooled
Effective photosensitive area/ch 3 x 3 mm
Number of pixels/ch 3584
Number of channels 16 (4 x 4) ch
Pixel pitch 50 μm
Note Analog output
Measurement condition Ta=25 ℃

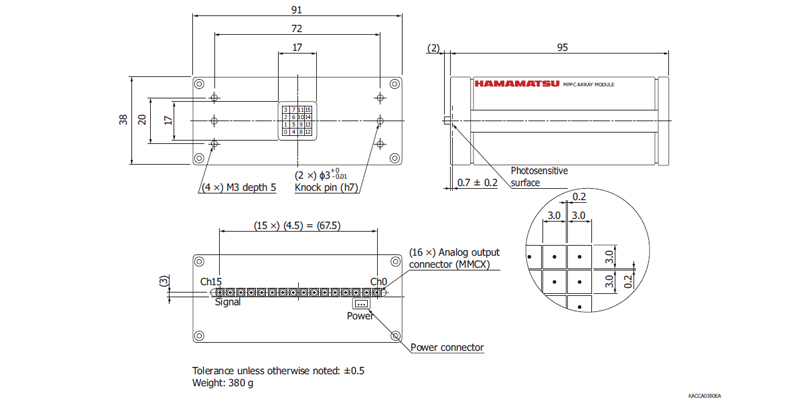

Dimensional outline (unit: mm)
